C6266
| Quantity: | |
|---|---|
Items | C6266 | C6280 | |
CAPACITY | |||
Swing Over Slide | Φ660mm / Φ800mm | ||
Swing Over Cross Slide | Φ440mm | Φ570mm | |
Swing in Gap Diameter | Φ900mm | Φ1035mm | |
Length of Gap | 250mm | ||
Center Height | 330mm | ||
Distance Between Centers | 1500mm/2000mm/3000mm | ||
Width of Bed | 400mm | 400mm | |
Max. Section of Tool | 25mm × 25mm | ||
Max. Travel of Cross Slide | 368mm | 420mm | |
Max. Travel of Compound Rest | 230mm | 230mm | |
HEADSTOCK | |||
Spindle Bore | Φ105mm | ||
Spindle Nose | D1-8 | ||
Taper of Spindle Bore | Φ113mm(1:20)/MT5 | ||
Spindle Speed Number | 16 | ||
Range of Spindle Speed | 25~1600rpm | 25~1600rpm | |
FEEDS AND THREADS | |||
Leadscrew Pitch | Φ40mm×2T.P.I. or Φ40mm×12mm | ||
Inch Threads Range | 7/16~80T.P.I. (54 kinds) | ||
Metric Threads Range | 0.45~120mm (54 kinds) | ||
Diametrical Pitches Range | 7/8~160DP (42 kinds) | ||
Module Pitches Range | 0.25~60MP (46 kinds) | ||
Longitudinal Feeds Range in Metric Lead Screw | 0.044~1.48mm/rev (25 kinds) | ||
Longitudinal Feeds Range in Inch Lead Screw | 0.00165"~0.05497"/rev (25 kinds) | ||
Cross Feeds Range in Metric Lead Screw | 0.022~0.74mm/rev (25 kinds) | ||
Cross Feeds Range in Inch Lead Screw | 0.00083"~0.02774"/rev (25 kinds) | ||
TAILSTOCK | |||
Quill travel | 235mm | ||
Quill diameter | Φ90mm | ||
Quill taper | MT5 | ||
MOTOR | |||
Main motor power | 7.5kW(10HP) | ||
Coolant pump power | 0.09kW (1/8HP) | ||
DIMENSION AND WEIGHT | |||
Overall Dimension (L×W×H) | 321x123x160cm (1500mm) | 321x123x167cm (1500mm) | |
371x123x160cm (2000mm) | 371x123x167cm (2000mm) | ||
471x123x160cm (3000mm) | 471x123x167cm (3000mm) | ||
Packing Size (L×W×H) | 324x114x184cm (1500mm) | 324x114x191cm (1500mm) | |
374x114x184cm (2000mm) | 374x114x191cm (2000mm) | ||
474x114x184cm (3000mm) | 474x114x191cm (3000mm) | ||
Net Weight | 3060/3345/3710kg | 3220/3505/3870kg | |
Gross Weight | 3535/3835/4310kg | 3705/4005/4480kg | |
C6266 Metal Processing Lathe Product Details Page Text Content
1、 Product Overview

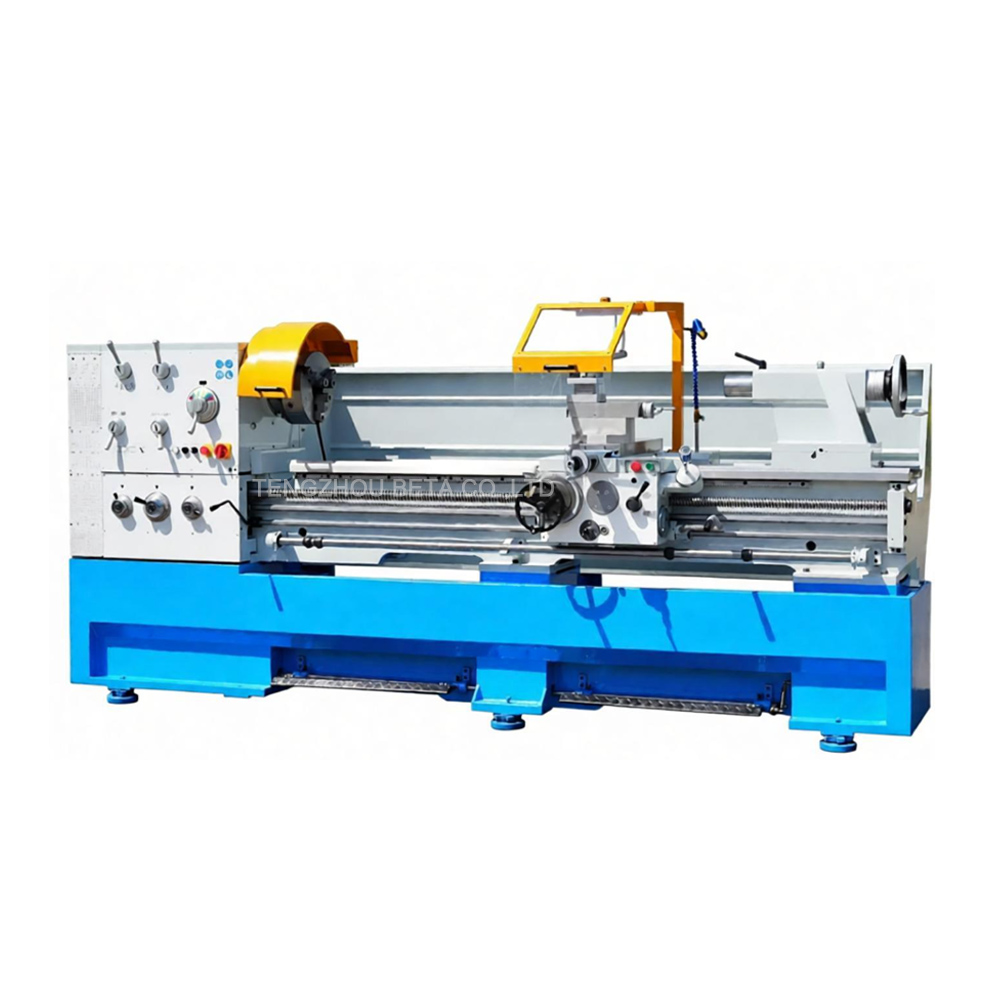

C6266 is a common horizontal lathe, belonging to the saddle lathe series, widely used in mechanical manufacturing, automotive parts, hardware processing and other fields. It can efficiently complete machining tasks such as turning, drilling, tapping, and slotting, meeting the precision machining needs of medium and large workpieces.
2、 Spindle system:
The diameter of the spindle through-hole is 105mm, the taper of the spindle hole is 1:20 (metric taper), the spindle head type is A2-11, and the spindle speed is 16 levels (25-1600rpm), which meets the requirements of low-speed heavy cutting and high-speed precision machining.
3、 Structural and performance advantages
Bed and guide rail:
The bed body and legs are made of high-strength cast iron, which has undergone multiple aging treatments to suppress machining deformation and stress; The bed guide rail undergoes precision grinding after intermediate frequency quenching, ensuring long-lasting strength and long-term stability during use.
Bedhead box and transmission:
The headboard box is precision machined on a horizontal machining center, and the bearings inside the box are from well-known brands; The spindle and gears undergo high-frequency quenching, precision grinding, and surface shot blasting treatment to enhance the overall performance of the machine.

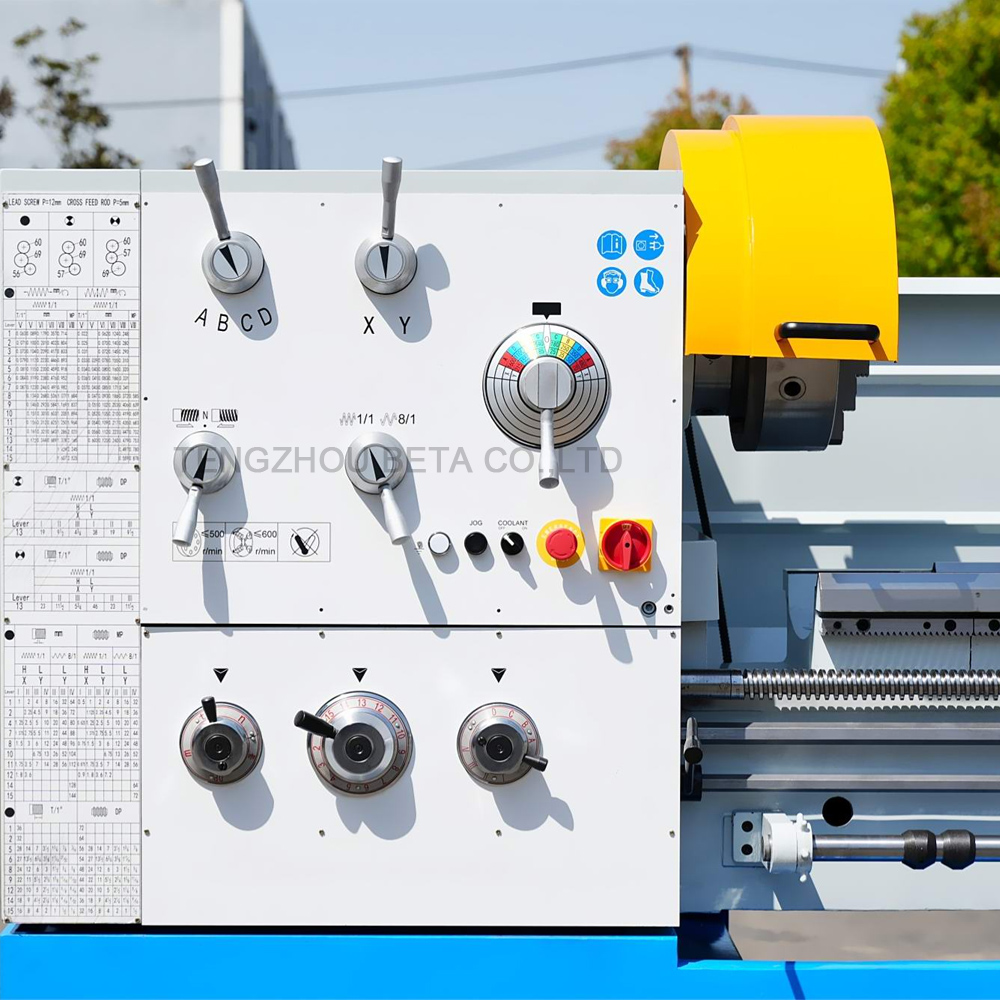

Knife box and operation:
The gearbox transmission mechanism accurately transmits speed to the lead screw; The panel is equipped with metric and imperial thread selection, technical parameter reference table, and user-friendly operation design to improve production efficiency.

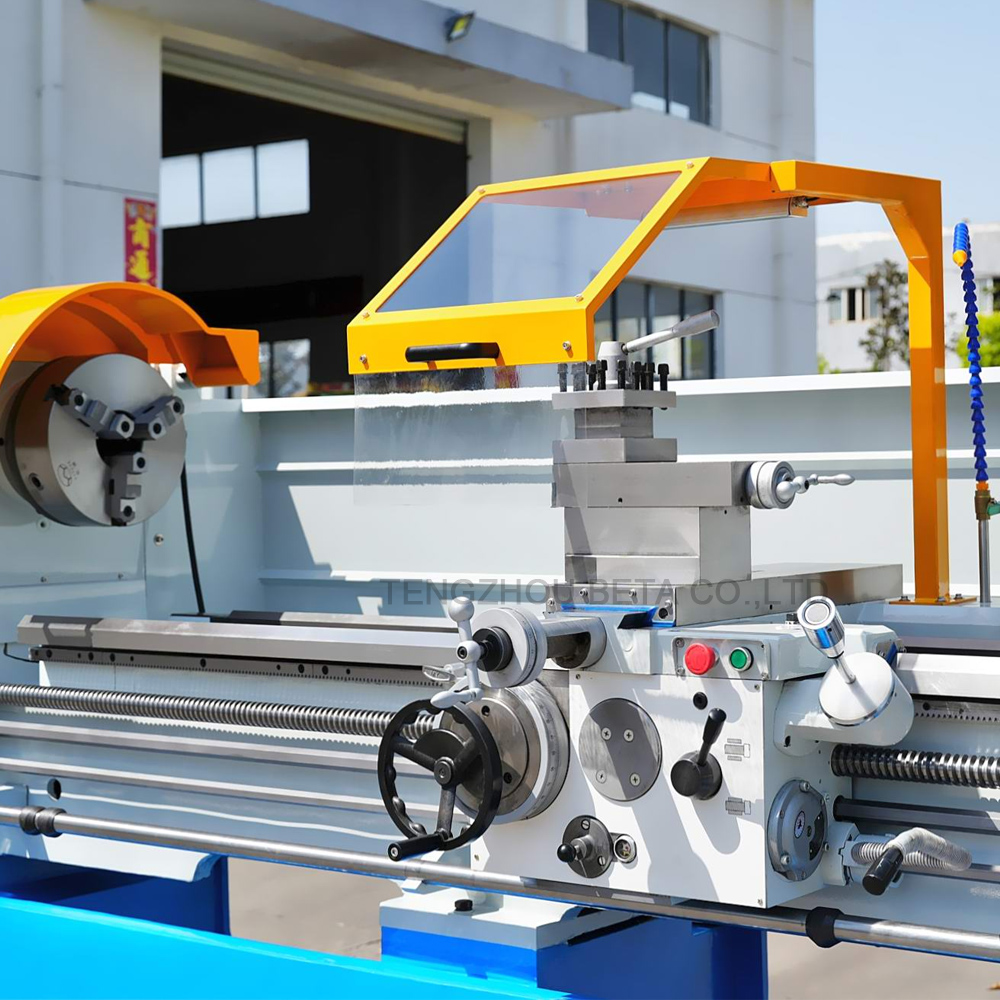

Slippery box and guide rail:
Through scientific calculation and reasonable gear transmission, the slide box accurately transmits the screw rotation to the saddle's horizontal/vertical feed, ensuring the realization of machining functions; The saddle level-V guide rail adopts plastic sticking technology, with low dynamic/static friction, manual scraping and grinding to ensure contact and lubrication, and significant accuracy retention.
Tool holder system:
Exquisite knife holder design, convenient tool clamping; The combination of large and small tool holders can complete the processing of special parts, and the upper tool holder can be used separately to shorten the taper.
4、 Industry applications and adaptation scenarios
The C6266 metal processing lathe is suitable for industries such as light industry, machinery, automobiles, motorcycles, etc., especially for turning, drilling, tapping and other processing scenarios of medium and large workpieces, meeting the needs of mass production and precision machining.
5、 Brand and after-sales support
It is recommended to choose high-quality brands such as TENGZHOU BETA CO., LTD, whose products are more reliable in terms of materials, craftsmanship, and service. Brand lathes usually provide 1-year warranty, online technical support and other services to reduce procurement and usage risks for enterprises.
As a typical representative of ordinary horizontal lathes, C6266 conventional lathe machine has become a reliable choice for processing medium and large workpieces due to its advantages such as large machining range, precise transmission, user-friendly operation, and brand after-sales support. Enterprises can accurately match procurement plans based on their own production needs, combined with dimensions such as brand reputation, price, and service.
