CNC (Computer Numerical Control) milling machines have transformed the manufacturing industry by providing a high level of automation, precision, and flexibility. Understanding how CNC milling machines work is essential for anyone involved in manufacturing, machining, or working with mechanical parts. In this article, we’ll break down the key components, principles, and processes involved in CNC milling, shedding light on how these machines operate and contribute to modern manufacturing.

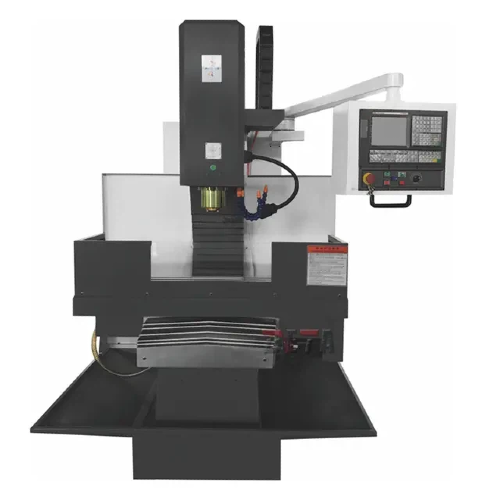

A CNC milling machine is a versatile and automated tool used to remove material from a workpiece to create precise and intricate parts. These machines use computer-controlled movements to perform a variety of machining tasks such as cutting, drilling, and shaping materials. Unlike traditional manual milling machines, CNC milling machines are automated, which allows them to operate without constant human intervention once set up.
CNC milling machines are made up of several essential components:
Spindle: Rotates the cutting tool at high speeds.
Tool Holder: Secures the cutting tools.
Workpiece: The material being cut or shaped.
CNC Controller: The brain of the machine, responsible for controlling the movements and actions of the machine.
Axes: These define the directions in which the machine moves during machining (typically 3-axis, but can be 4, 5, or more).
In a traditional manual milling machine, the operator controls the movement of the tool and workpiece manually. In contrast, a CNC milling machine operates using a computer program that automates the machine’s movements, making it much more precise and efficient for producing complex parts.
CNC milling machines work by following pre-programmed instructions (often referred to as G-code) that control the movement of the machine’s cutting tool and workpiece. The CNC controller interprets these instructions and translates them into mechanical movements that allow the tool to interact with the workpiece and perform the necessary machining operations.
Here’s an overview of how a typical CNC milling machine works:
Setup: The workpiece is fixed in place, and the correct cutting tool is selected.
Programming: A CNC program is created, either manually or through software, which defines the exact movements of the machine.
Execution: The CNC controller reads the program and commands the machine to move along its axes to cut or shape the material.
The CNC controller is essentially the "brain" of the CNC machine. It reads the program, processes the data, and then directs the movements of the machine to perform specific tasks. The controller ensures that each step of the process is performed with precision, from the initial tool selection to the final cut.
The movement of a CNC milling machine is controlled along three axes: X, Y, and Z. Each axis represents a direction of movement, and the machine can move the tool or workpiece along these axes to perform different tasks.
X-Axis: Typically represents the horizontal movement (left to right).
Y-Axis: Represents the front-to-back movement.
Z-Axis: Represents vertical movement (up and down).
These three axes are the foundation of CNC milling, and they define the basic movement capabilities of the machine. In a 3-axis CNC milling machine, the cutting tool moves along the X, Y, and Z axes to remove material from the workpiece.
In more advanced CNC milling machines, additional axes are used to allow for more complex movements. 4-axis and 5-axis machines add rotation along additional axes, providing greater flexibility for machining complex geometries. These machines are ideal for parts with intricate features or multi-angle cuts.
Axis | Movement | Description |
X-Axis | Horizontal (left-right) | Moves the tool or workpiece left to right |
Y-Axis | Horizontal (front-back) | Moves the tool or workpiece forward and backward |
Z-Axis | Vertical (up-down) | Moves the tool up and down to cut into the material |
A/B/C-Axis | Rotational | Adds rotation to the tool or workpiece for more precise cutting |
CNC milling machines consist of several key components that work together to achieve precise and accurate machining. Let’s break down each component:
The spindle is one of the most important components of a CNC milling machine. It holds and rotates the cutting tool. The speed of the spindle can vary depending on the material being cut, and its power determines how effectively the machine can cut through different materials.
Spindle Speed: Determines how fast the tool rotates and impacts the cutting performance.
Spindle Power: Affects the machine’s ability to cut through tough materials.
The tool holder secures the cutting tool and ensures it remains stable during operation. There are various types of tool holders, such as collets, chucks, and quick-change systems, each designed for different types of tooling.
The workpiece is the material being machined. It is secured to the machine's table, which may have clamps, a vise, or other fixtures to hold it in place during the milling process. Accurate positioning of the workpiece is essential for achieving precise cuts.
The CNC controller manages the machine’s movements by interpreting the programmed instructions and sending corresponding commands to the machine’s motors. The controller ensures that the tool follows the correct path and that each cut is made precisely.
Programming is a crucial aspect of CNC milling. The process involves converting a design (created in CAD software) into machine-readable instructions that dictate how the machine should move during machining.
G-code is the standard programming language used by most CNC machines. It tells the machine where to move, how fast to move, and what actions to perform. Some common G-code commands include:
G0: Rapid positioning
G1: Linear interpolation (used for cutting)
G2/G3: Circular interpolation (used for arcs)
M-codes: Miscellaneous functions (e.g., tool changes, spindle speed adjustments)
CAD Design: A part is designed using CAD (Computer-Aided Design) software.
CAM Programming: The design is converted into machine tool paths using CAM (Computer-Aided Manufacturing) software.
G-code Generation: The tool paths are translated into G-code that the CNC machine can understand.
CNC milling machines can perform various operations, each suited for different machining tasks. The most common operations include:
Face milling involves cutting the surface of the workpiece to create a flat, smooth surface. This is typically used for parts that require a clean, finished surface.
Peripheral milling is used for cutting along the sides of the workpiece, making it ideal for creating slots, grooves, and other features on the outer edges of a part.
CNC milling machines are also capable of drilling holes and adding threads to those holes (tapping). This is often necessary for assembly or fastening parts together.
Slotting is the process of creating narrow grooves or slots in a part, while profiling involves shaping the edges or contours of a part.
CNC milling machines offer several advantages over traditional machining methods, including:
CNC milling machines provide high precision and can repeat operations with minimal deviation. This is essential for industries that require parts to meet tight tolerances.
Because CNC milling machines are automated, they can operate continuously, reducing the need for manual labor and increasing production efficiency.
CNC milling machines can handle a wide range of materials, from metals like aluminum, steel, and titanium to plastics and composites, making them versatile for different applications.
CNC milling machines are capable of producing parts with complex shapes that would be difficult or impossible to achieve using traditional methods.
CNC milling machines are indeed the backbone of modern manufacturing, providing exceptional precision, efficiency, and versatility. These machines follow programmed instructions that direct the movement of both the cutting tool and workpiece along multiple axes, ensuring precise machining. Understanding the functionality of CNC milling machines—along with their components, processes, and capabilities—empowers manufacturers to optimize production, reduce errors, and achieve consistently high-quality results. By incorporating CNC milling into their operations, companies can streamline processes, minimize manual labor, and efficiently produce complex parts.
At TENGZHOU BETA CO., LTD., we offer a range of CNC milling machines that can meet the diverse needs of your business. Our machines are designed for high precision, reliability, and ease of use, providing you with the tools needed to enhance your production capabilities. Whether you are looking for solutions for mass production or custom parts, we can help you find the right CNC milling machine to optimize your operations. Reach out to us today to learn more about our offerings and discover how we can support your manufacturing needs.
1. How does a CNC milling machine differ from a traditional milling machine?
CNC milling machines use computer programs to control movements, offering automation, precision, and efficiency, unlike traditional milling machines, which require manual operation.
2. What is the role of G-code in CNC milling?
G-code is the standard programming language used by CNC milling machines to control their movements. It specifies the tool’s path, speed, and other machining instructions.
3. Can a CNC milling machine work with any material?
Yes, CNC milling machines can process a wide range of materials, including metals, plastics, and composites, depending on the machine’s power and tool configuration.
4. How long does it take to set up a CNC milling machine?
Setup time can vary based on the complexity of the part and the machine. Simple parts may require minimal setup, while complex or custom jobs may take longer.
5. What is the advantage of using a multi-axis CNC milling machine?
Multi-axis CNC milling machines offer greater flexibility, enabling the machining of complex geometries and multi-angle cuts, which are difficult to achieve with traditional 3-axis machines.
