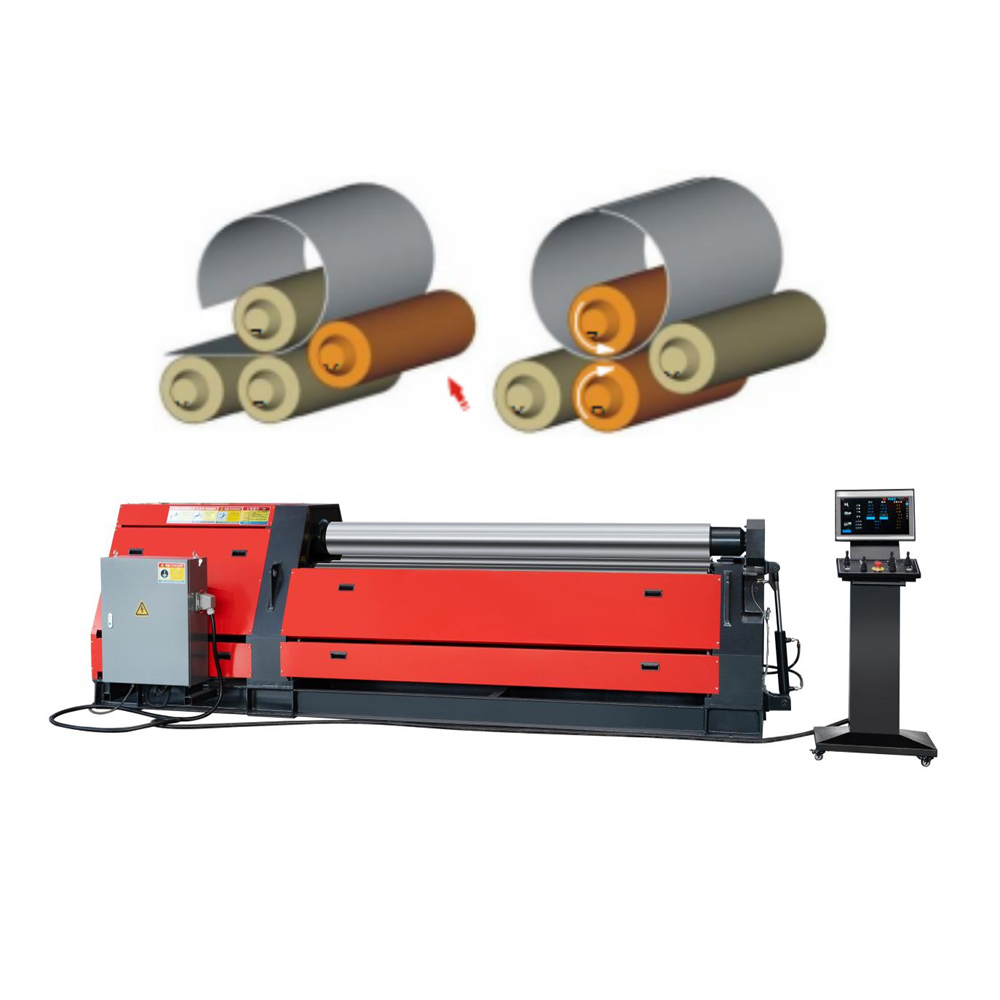

Industrial Hydraulic Metal Steel Sheet 4 Roller Rolling Machine

The W12 series four roll hydraulic metal plate rolling machine is a high-precision equipment for sheet metal rolling and forming.

Model W12-12x1500

Max. Rolling thickness 12mm

Max. Pre-rolling thickness 10mm

Max. Rolling length 1500mm

Machine drive mode: PLC + Touch Screen

Model	W12-12×1500
Upper roller	Φ250 mm
Lower roller	Φ240 mm
Side roller	Φ200 mm
Max bending thickness	12 mm
Max Pre-bending thickness	10 mm
Max bending length	1500 mm
Working roll drive type	Upper roller hydraulic motor drive
Machine drive mode	PLC+Touch Screen
Yield limit of plate	≤245Mpa
Rolling speed	Around 4m/min
Pre-bend remaining straight edges	≤1.5 times plate thickness
Minimum rolling diameter at full load	Φ500 mm
Total Power	7.5KW
Control System	The control system has an automatic rolling program, which can realize one-touch operation, automatically align the material and roll it into a round shape at one time, and has data numbering, storage and call functions, which can store hundreds of data and facilitate automatic rolling of various specifications. The system is compatible with manual operation programs and can be operated manually when needed.
Overall dimension	350013001320mm
Machine weight	4500 KG
