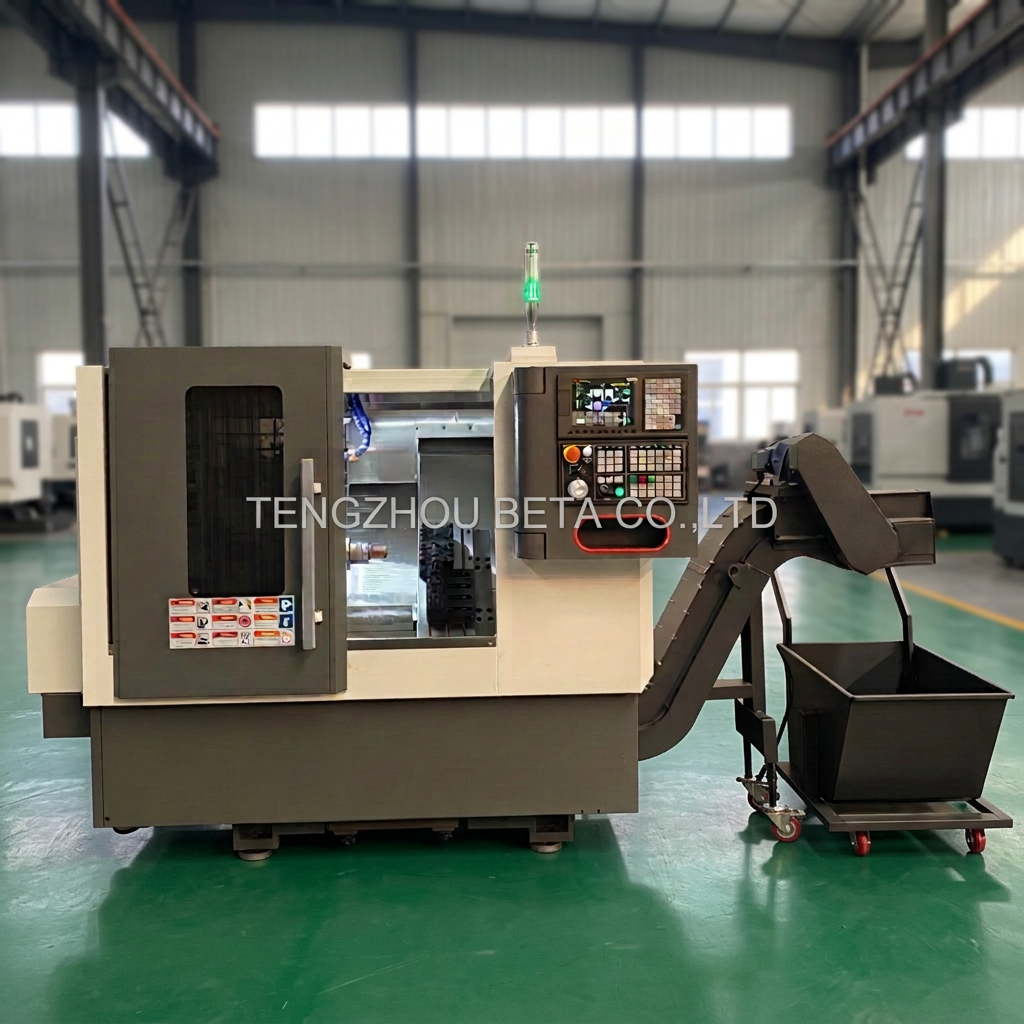

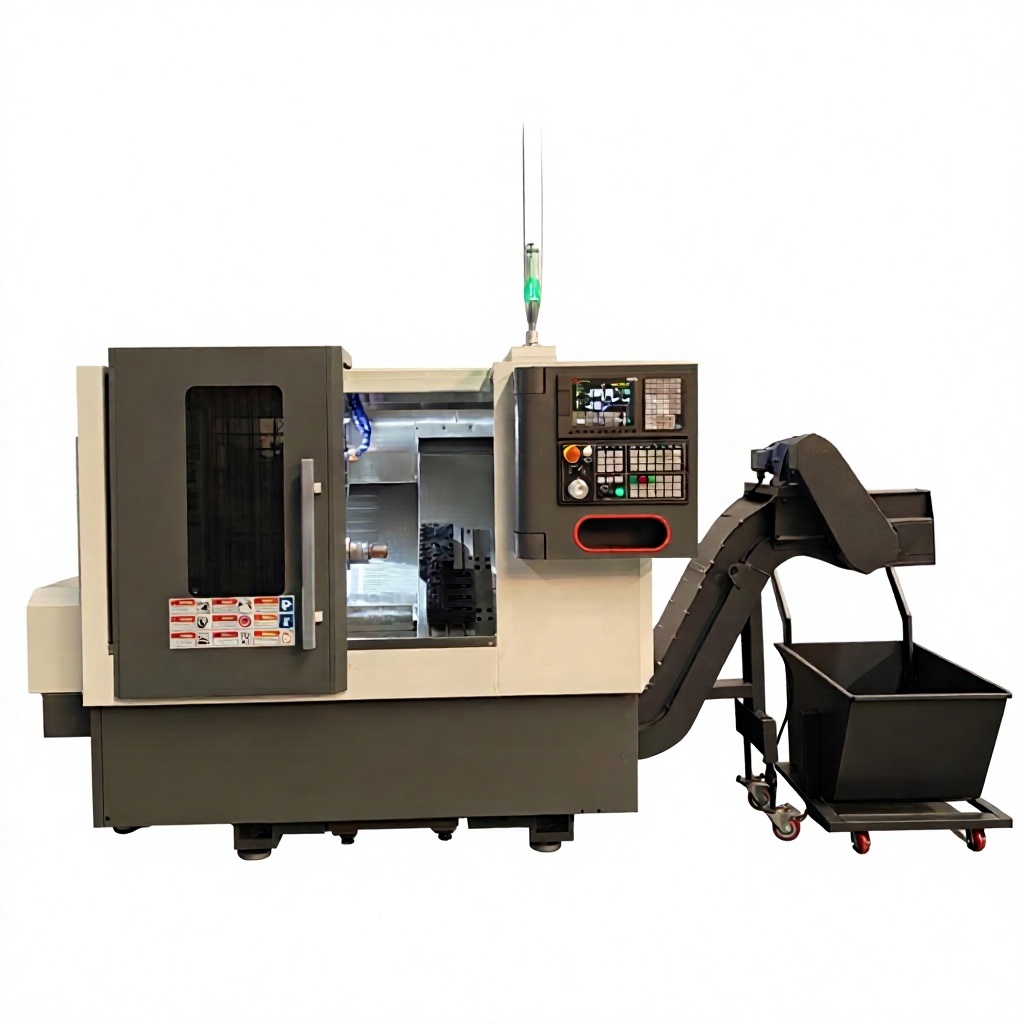

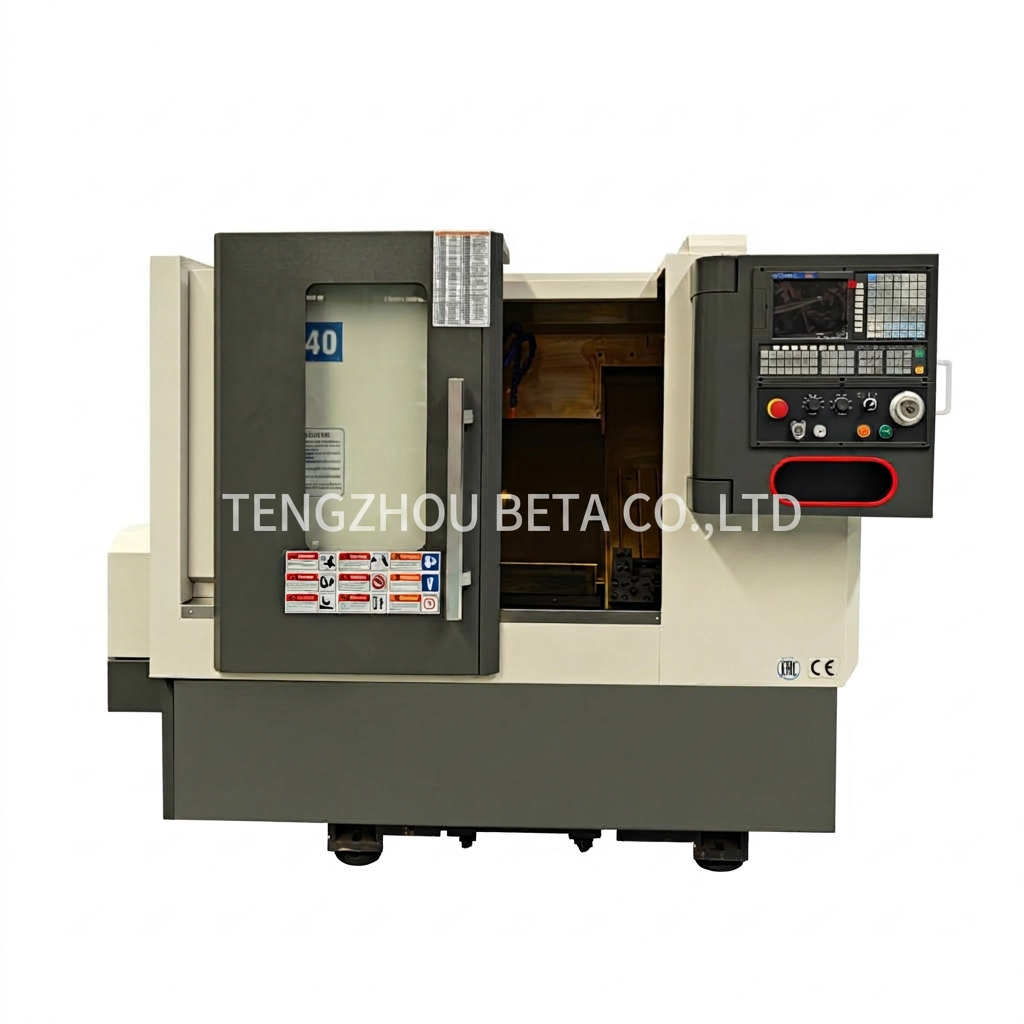

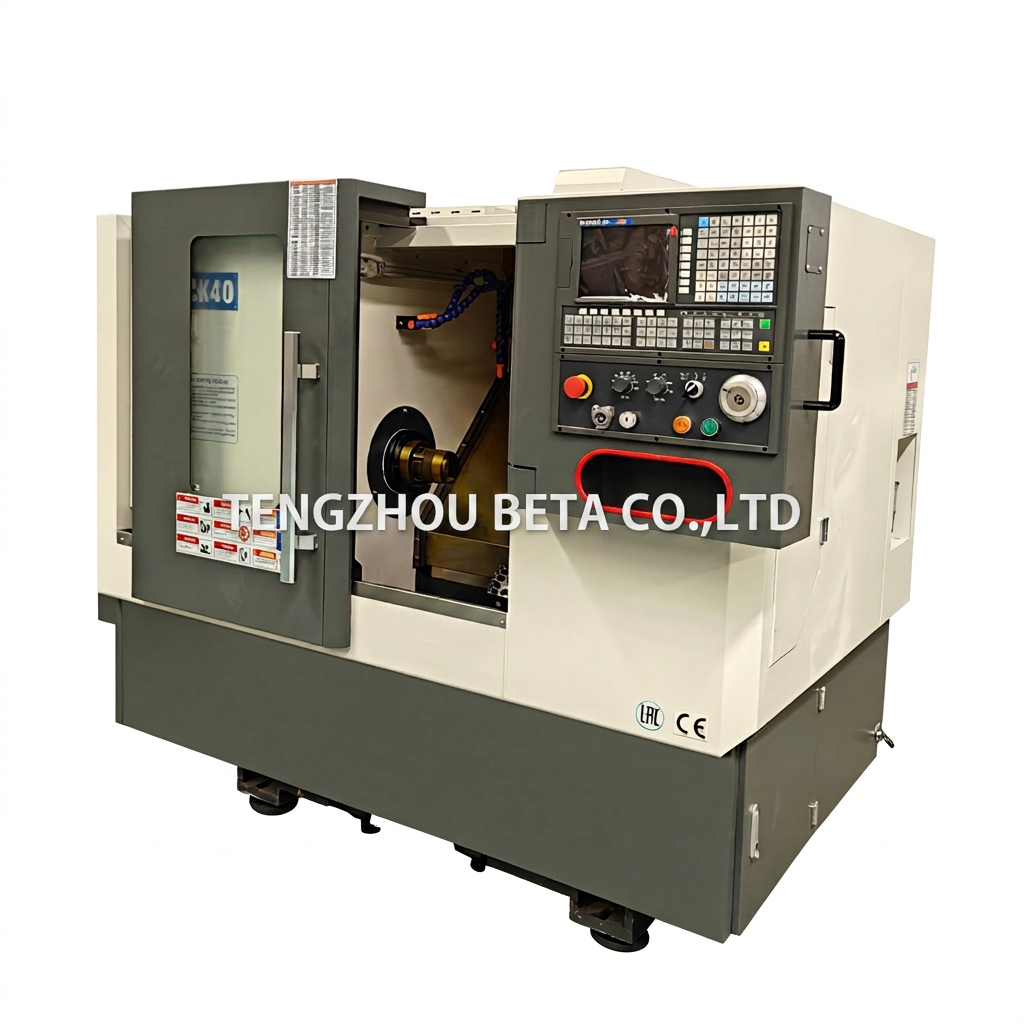

TCK40
TENGZHOU BETA CNC LATHE
| Quantity: | |
|---|---|
Max.swing over bed |
400mm |
Max.swing over carriage |
120mm |
Max. Disc type parts turning diameter |
400mm |
Max. Turning length |
330mm |
Spindle nose |
A2-5 |
Spindle bore diameter |
48mm |
Spindle Max.speed |
3500rpm |
Main motor power |
5.5kw servo |
Hydraulic collet |
HC640 |
Guide way |
Linear guideway |
X/Z axis travel |
400/400mm |
Size tool shank |
20x20mm |
X/Z axis rapid speed |
24/24 m/min |
X/Z axis linear guideway |
30/30 |
X/Z axis lead screw |
3210/3210 |
X/Z axis Motor torque |
6/6 N.M |
Min. Setting unit |
0.001mm |
Clamp |
6 inch hollow oil cylinder and hydraulic collet clamp |
Toolpost |
20x20mm gang type tool 4 pieces |
Overall dimension |
1920*1550*1650mm |
Net weight |
1500 kg |
CNC Controller |
GSK980TC3 |
X/Z axis drive motor |
GSK |
Voltage |
380V/50HZ/3PH , or , 220V/60HZ/3PH |
Small slant‑bed CNC lathes feature high precision, high efficiency and excellent chip‑removal performance. They are ideal for medium‑small precision shaft and disc‑type parts with strong compatibility for automation. This is one of our best‑selling models for export. Its main application areas are listed below:
Workpieces: Solenoid valve spools, valve sleeves, cylinder piston rods, joints, sealing compression sleeves, pneumatic connectors
Features: Compact dimensions, tight tolerances and large‑batch production. The slant‑bed design ensures smooth chip removal and suits automatic bar feeding.
Not for large crankshafts; focused on medium‑small precision components.
New‑energy vehicles: Motor shafts, sensor housings, connector shells, battery terminals, fasteners
Traditional auto parts: Fuel injector components, small gear shafts, bushings, oil pipe joints, small brake hardware.
Mobile phones / Security monitoring: Camera lens holders, housing connectors, RF communication joints, precision copper & aluminum connectors
Features: Predominantly copper and aluminum workpieces; high‑speed machining and strict requirements for surface finish.
Small orthopedic fittings, surgical instrument pins, threaded sleeves, medical connectors.
Mostly stainless‑steel machining. The slant‑bed delivers good rigidity for stainless‑steel cutting and mass precision production.
Various non‑standard bolts, nuts, sleeves, shaft pins, rollers, tool shanks.
Fitted with a bar feeder to realize fully‑automatic mass production.
Faucet cartridges, copper joints, plumbing valve parts, bathroom hardware fittings; high‑volume copper‑part machining.
Small mould inserts, guide pins & guide bushes, eccentric shafts, couplings, gear blanks; various custom precision shaft and disc parts.
8. Instruments & Meters
Sensor housings, instrument shafts, meter cases, precision bushings with high requirements for dimensional consistency.
