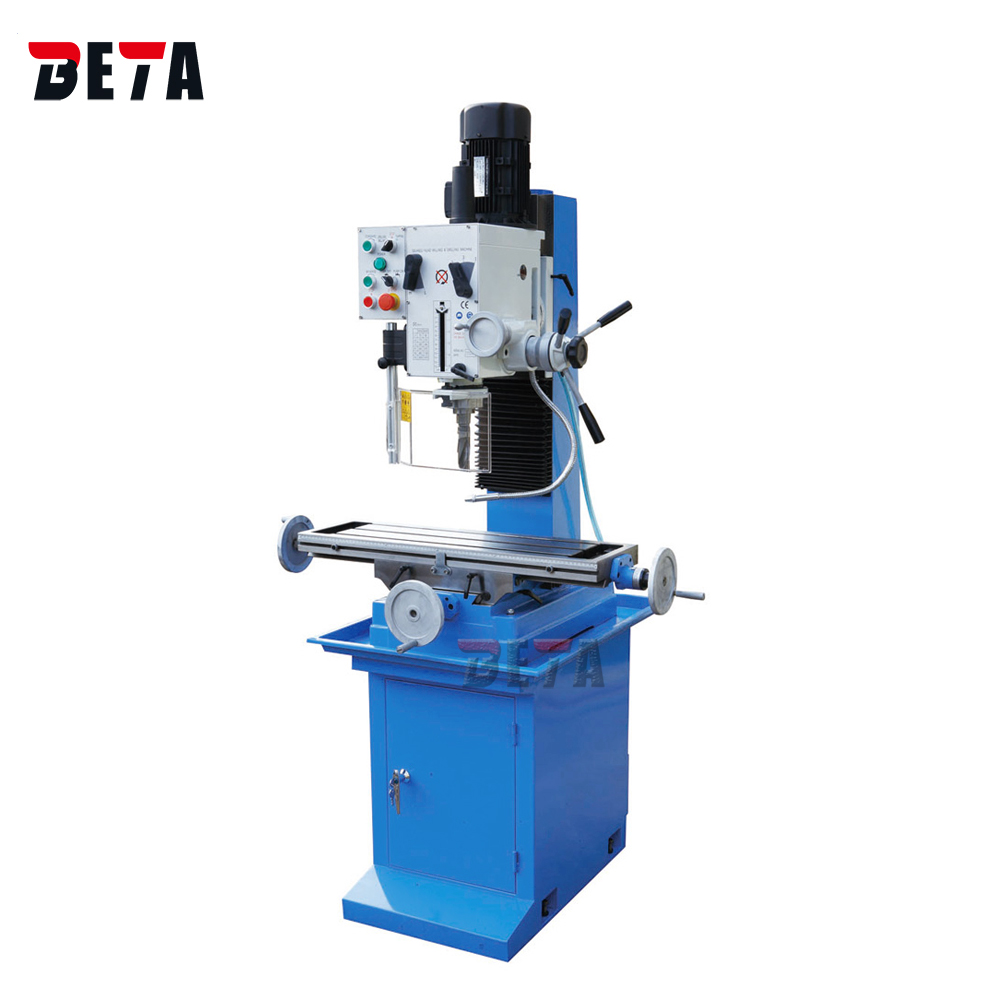

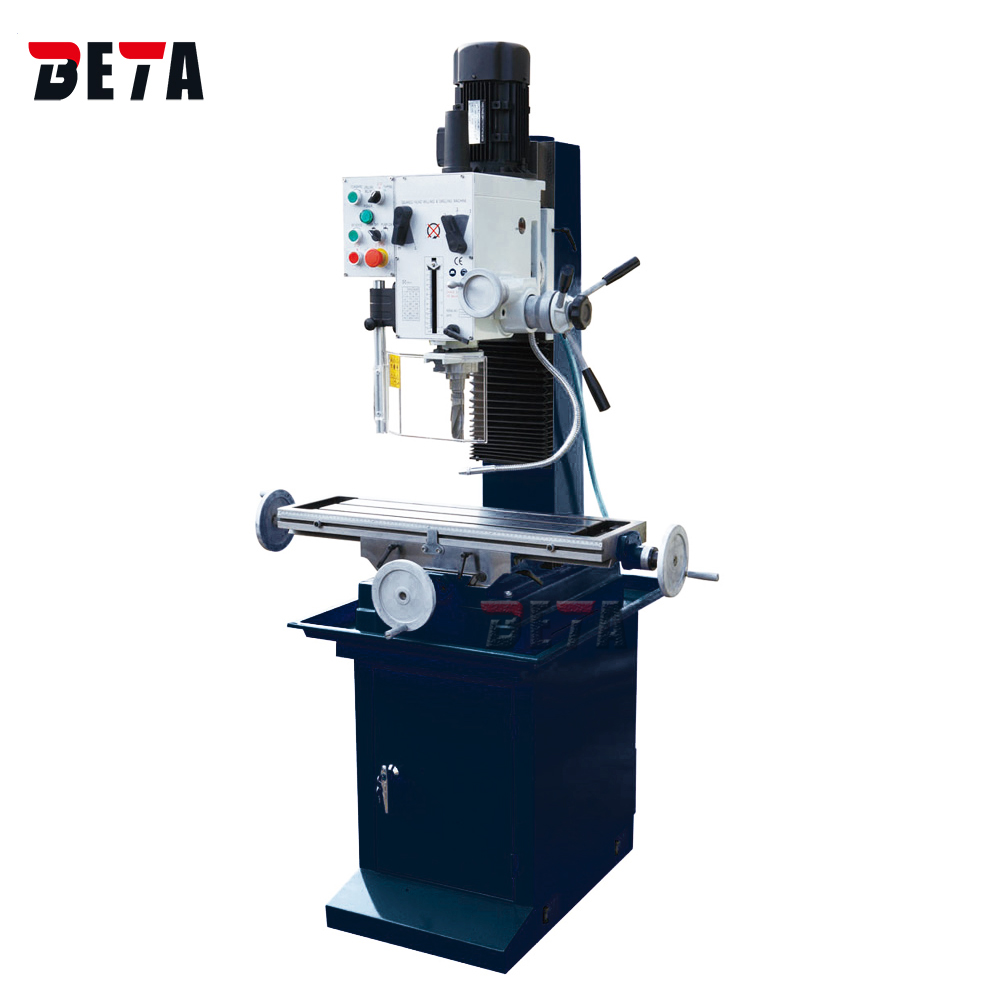

ZX45 Drilling Milling Machine With Power Feed

Milling machine voltage 380V/50HZ/3PH or customized.

This drilling and milling machine combines two operations in one unit.

Specification:

Small Universal Drilling and Milling Machine	Unit	ZX45
Max. Drilling capacity (iron/steel)	mm	45/32
Max. Milling capacity (End milling)	mm	32
Max. Milling capacity (Face milling)	mm	80
Worktable size	mm	800x240 or 1000x240
Table Longitudinal travel(manual/auto)	mm	560
Table Cross travel (manual/auto)	mm	190
Spindle taper	-	MT4 or R8
Spindle travel	mm	120
Spindle speed	rpm	75, 170, 280, 540, 960, 1600
Swivel angle of head	degree	±45°
Distance from vertical spindle nose to table surface	mm	460
Main motor power / speed	kw	1.5 / 1450rpm
Packing size	mm	850x760x1150
N.W./G.W.:	kg	325/350

Standard configurations:

Worktable 800*240mm, spindle taper MT4/R8 can be choose,

Draw bar, adapter, taper shank for drilling chuck, drilling chuck,

T-slot bolt, washer, nut, tilted wedge, spanner, oil gun, Spindle protection power-off, tool box.

Optional accessories:

Main Power Switch

Main circuit breaker protection

Reset start+main circuit breaker protection

Large worktable size 1000*240mm

Spindle auto feeding

Halogen work light

LED work light

Tapping

Steel base stand

Cast iron base stand

Power feed X-axis

Power feed Y-axis

Coolant pump

Electronic depth display

Double speed motor (only for 3 phase)

ISO30 spindle

3-axis SINO digital readout
