Gantry CNC Vs. Vertical Machining Centers: Key Differences

The evolution of modern manufacturing has been defined by the transition from manual labor to high-precision automated systems. In the realm of subtractive manufacturing, choosing the right machinery is the cornerstone of operational efficiency and cost-effectiveness. Among the most critical decisions a facility manager or business owner must make is selecting between a Gantry CNC and a Vertical Machining Center (VMC). Both systems offer distinct mechanical advantages tailored to specific industrial needs, ranging from aerospace components to heavy-duty mold making.

Gantry CNC machines and Vertical Machining Centers differ primarily in their structural architecture and work envelope; a Gantry CNC utilizes a bridge-like structure moving over a stationary or moving bed to handle oversized, heavy parts, whereas a Vertical Machining Center (VMC) features a vertical spindle and a stationary column design optimized for high-speed, high-precision machining of small to medium-sized components.

Understanding these differences requires a deep dive into axis movement, load capacities, and the specific mechanical rigidity offered by each platform. This guide provides a comprehensive analysis of both systems, comparing their structural integrity, precision levels, and application suitability to help you determine which machine will maximize your production ROI.

Executive Summary of Sections

Introduction

CNC machining serves as the backbone of the industrial sector, providing the necessary precision to create complex metal and plastic components used in everything from medical devices to automotive engines. Without these advanced systems, the mass production of interchangeable parts would remain a logistical impossibility. As manufacturing demands increase, the nuances between machine types become more significant for ensuring that a workshop remains competitive in a global market.

The choice between a Gantry-style machine and a Vertical Machining Center is not merely a matter of preference but a strategic technical decision. Each machine type possesses unique characteristics in terms of vibration dampening, thermal stability, and spindle torque. For example, high-performance units like a heavy-duty customized vertical milling center are engineered to provide maximum stability for complex milling tasks that require consistent accuracy over long production cycles.

By examining the mechanical blueprints and operational limits of these two powerhouses, we can better understand how to leverage their strengths. This article will dissect the engineering behind the Gantry and VMC platforms to provide a clear roadmap for your next equipment investment.

What is a Gantry CNC?

A Gantry CNC is a large-scale machining system characterized by a "bridge" or gantry structure that travels along two elevated rails, allowing the cutting head to move across the X, Y, and Z axes over a large workspace. This design is fundamentally different from traditional C-frame machines, as it distributes the weight of the moving components across a wider base, providing exceptional stability for massive workpieces.

The structural hallmark of a Gantry CNC is its overhead bridge. In a fixed-gantry design, the table moves under the bridge, whereas in a moving-gantry design, the bridge moves over a stationary table. This latter configuration is particularly beneficial for machining extremely heavy parts, such as wind turbine blades or large aerospace fuselage sections, because the workpiece remains immobile, eliminating the dynamic forces associated with moving a heavy mass during the cutting process.

Furthermore, Gantry machines are favored for their expansive work envelopes. Because the rails can be extended almost indefinitely, these machines can handle parts that are several meters long. The rigidity provided by the dual-column support minimizes "chatter" or vibration, which is essential when using high-torque spindles to remove large volumes of material from hardened steel or titanium alloys.

Advantages and Applications of Gantry CNCs

1. Massive Work Envelope: Ideal for oversized components that would not fit within the confines of a standard machine enclosure.

2. Superior Load Capacity: Capable of supporting workpieces weighing several tons without compromising the accuracy of the axis travel.

3. High Rigidity: The bridge structure reduces deflection, making it suitable for heavy-duty roughing operations in the energy and maritime sectors.

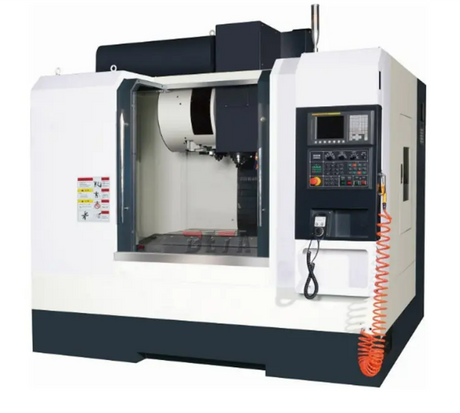

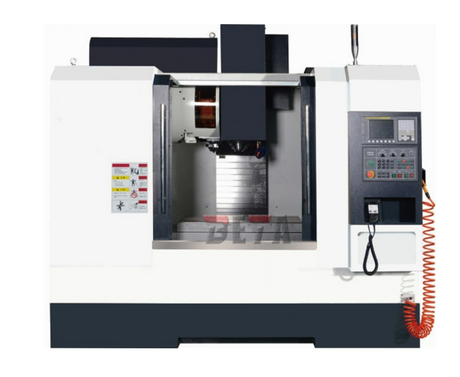

What is a Vertical Machining Center (VMC)?

A Vertical Machining Center, or VMC, is a high-precision CNC machine tool where the spindle axis is oriented vertically, allowing the cutting tool to move down onto the workpiece which is typically clamped to a moving table. VMCs are the most common type of machining center in the world due to their versatility, ease of use, and lower footprint compared to larger horizontal or gantry systems.

At the heart of the VMC is the vertical spindle. This orientation is highly effective for "top-down" machining, such as face milling, end milling, drilling, and tapping. Most modern VMCs, such as a high-precision VMC with a BT40 spindle, utilize advanced cooling systems and high-rpm spindles to achieve superior surface finishes on aluminum, steel, and exotic alloys.

The "C-frame" construction of a Vertical Machining Center offers excellent accessibility for the operator. Gravity also plays a helpful role in VMC operations, as it helps pull the cutting chips away from the tool and down into the chip conveyor or collection tray. Because of their compact design and high-speed capabilities, VMCs are the primary choice for mold and die shops, medical component manufacturers, and general job shops that require fast changeovers between different parts.

Key Components of a VMC

1. The Spindle: The rotating component that holds the tool; its speed (RPM) and torque determine the types of materials the machine can process.

2. Automatic Tool Changer (ATC): A system that allows the machine to swap tools in seconds, enabling complex operations without manual intervention.

3. Control System: The computer interface (e.g., Fanuc, Mitsubishi) that interprets G-code to drive the servo motors with micron-level precision.

Main Differences Between Gantry CNC and VMC

The main differences between a Gantry CNC and a Vertical Machining Center revolve around their structural rigidity, the maximum size of the workpiece they can accommodate, and the specific motion dynamics of their axes. While both machines can perform similar milling tasks, the Gantry is designed for scale and heavy load-bearing, while the VMC is optimized for speed, precision, and ease of setup for small-to-medium parts.

One of the most significant technical distinctions is the "Throat Depth" or the distance between the spindle and the machine column. In a standard Vertical Machining Center, this distance is limited by the physical arm of the C-frame. If the part is too wide, it will hit the column. In a Gantry CNC, the "throat" is essentially the width between the two columns of the bridge, allowing for much wider parts to pass through or sit within the machining zone.

Comparison Table: Gantry vs. VMC

For many manufacturers, a sturdy vertical machining solution provides the best balance of price and performance. VMCs generally offer faster rapid traverse speeds and tool change times, which are critical for high-volume production where every second of cycle time counts. Conversely, the Gantry remains the king of heavy industries where the shear mass of the workpiece dictates the machine architecture.

How to Choose the Best Option?

Choosing the best option between a Gantry CNC and a Vertical Machining Center depends on the physical dimensions of your parts, the material hardness, and your target production speed. You must evaluate whether your primary constraint is the physical "envelope" of the machine or the need for ultra-high-speed material removal and rapid tool changes.

If your business focuses on producing intricate components for the electronics or medical industries, a Vertical Machining Center is almost always the correct choice. These machines are designed for high-frequency use and precision. Modern shops often invest in a customized VMC platform to ensure they have the specific spindle power and table size required for their most common jobs.

Decision-Making Checklist

1. Evaluate Part Dimensions: Does the part exceed 1.5 meters in any direction? If yes, a Gantry is likely necessary.

2. Assess Weight: Will the workpiece exceed the table load limit of a standard C-frame machine? Gantry machines handle heavy loads more safely.

3. Required Precision vs. Speed: If you need rapid cycles for 10,000 units, the VMC’s agility is superior. If you are machining one massive engine block over 20 hours, the Gantry’s stability is preferred.

4. Floor Space: Do you have the room for a massive rail system, or do you need a machine that can be tucked into a standard workshop layout?

FAQs

What are the maintenance requirements for these machines?

Both Gantry CNCs and Vertical Machining Centers require regular lubrication of linear guides, spindle health checks, and coolant filtration, though Gantry machines often require more attention to rail alignment due to their longer travel distances. Because Gantry machines cover more ground, their drive systems (such as rack and pinion or long ball screws) are subject to different wear patterns than the more compact components found in a Vertical Machining Center.

Can a VMC perform 5-axis machining?

Yes, many Vertical Machining Centers can be upgraded to 5-axis capability by adding a rotary table (4th and 5th axis) to the existing X-Y table. This allows for the machining of extremely complex geometries without removing the part from the machine. While Gantry machines can also be 5-axis, they typically achieve this through a "tilting head" design rather than a moving table.

Which machine is more cost-effective?

Generally, a Vertical Machining Center is more cost-effective for general-purpose machining due to its lower initial purchase price and lower operational overhead. Gantry machines represent a significantly higher investment in terms of both capital expenditure and the specialized foundation (often reinforced concrete) required to support their weight and ensure accuracy.
