The manufacturing landscape has undergone a radical transformation with the advent of high-precision CNC technology. Among the various tools available, the Vertical Machining Center stands as a cornerstone of modern production, offering unparalleled versatility for milling, drilling, and boring operations across diverse materials. As industries demand tighter tolerances and faster cycle times, selecting the right machine becomes a critical strategic decision that impacts long-term profitability and operational efficiency.
Choosing the right Vertical Machining Center involves a comprehensive evaluation of your specific production requirements, including workpiece size, material hardness, required precision levels, and spindle performance. A successful purchase balances technical specifications—such as axis travel, spindle speed, and tool capacity—with long-term reliability and the manufacturer's support infrastructure to ensure maximum uptime and return on investment.
In this detailed guide, we will explore the essential components of a Vertical Machining Center, compare it with other machining philosophies, and provide a systematic framework for evaluating your next equipment investment. Whether you are upgrading an existing shop or establishing a new production line, understanding these nuances is key to mastering the complexities of CNC machining.
Section | Summary |
Understanding Vertical Machining Centers | An introduction to the fundamental mechanics, features, and comparative benefits of VMC technology in the modern industrial sector. |
Factors to Consider When Selecting the Right Machining Center | A strategic deep dive into needs assessment, kinematic requirements, and the critical role of spindle power in production. |
Types of Vertical Machining Centers | An analysis of machine configurations ranging from 3-axis to 5-axis systems and specialized high-speed models. |
Maintenance and Support for Your Machining Center | Essential practices for ensuring machine longevity and the importance of selecting a partner with robust technical training. |

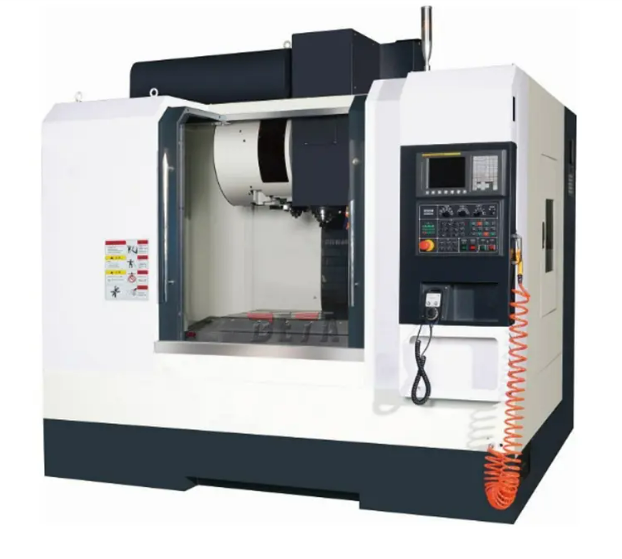

A Vertical Machining Center, commonly referred to as a VMC, is a sophisticated CNC machine tool where the spindle axis is oriented vertically, allowing the cutting tools to move down toward the workpiece mounted on a flat table.
At its core, a VMC utilizes a rotating cutting tool to remove material from a stationary workpiece. Unlike traditional milling machines, a modern VMC is fully enclosed and equipped with an Automatic Tool Changer (ATC), enabling it to perform complex sequences of operations without manual intervention. This vertical orientation is particularly advantageous for heavy workpieces because gravity helps keep the part securely seated on the machine bed, facilitating easier setups and adjustments.
Furthermore, the integration of advanced CNC controllers allows for extreme precision in three or more axes. Most standard VMCs operate on the X, Y, and Z axes, but higher-end models incorporate rotary tables for multi-axis work. This technology is vital for industries such as automotive, aerospace, and medical device manufacturing, where intricate geometries and high surface finishes are mandatory. By utilizing a Vertical CNC Milling Machining Center, workshops can significantly reduce lead times while maintaining a high degree of repeatability across large production runs.
The defining features of a CNC Vertical Machining Center include its rigid frame structure, high-precision vertical spindle, automatic tool changer, and an advanced CNC control system that orchestrates all mechanical movements.
Rigid Base and Column: The foundation of any VMC is its casting, usually made of high-grade Meehanite iron. This structure is designed to dampen vibrations and resist thermal deformation, which is essential for maintaining accuracy during heavy-duty cutting operations.
The Spindle Assembly: As the heart of the machine, the spindle dictates the speed and torque available for cutting. VMCs often feature BT40 or BT50 spindle tapers, catering to different levels of material removal requirements.
Automatic Tool Changer (ATC): Efficiency is driven by the ATC, which can swap tools in a matter of seconds. Common configurations include umbrella-type changers for cost-effectiveness and arm-type (side-mount) changers for faster tool-to-tool transitions.
Linear and Box Guideways: Machines use either linear motion guides for high speed and agility or box ways for maximum damping and heavy-duty milling performance.
These features work in harmony to provide a versatile platform. For instance, a Heavy Duty BT40 Spindle Machining Center combines a robust spindle with a high-capacity tool magazine, allowing a single machine to handle everything from roughing out large blocks of steel to fine-finishing delicate aluminum components. The precision of the ball screws and the feedback from encoders ensure that the tool position is accurate to within microns.
Vertical Machining Centers offer distinct advantages over Horizontal Machining Centers (HMCs) in terms of cost-effectiveness, ease of setup, visibility of the cutting process, and a smaller overall floor space requirement.
The most immediate benefit of a VMC is its accessibility. Since the spindle is vertical, operators have a clear view of the workpiece and the cutting tool throughout the process. This makes the VMC an ideal choice for prototype work or small batches where frequent monitoring is required. Additionally, the vertical orientation simplifies the fixturing of parts, as gravity assists in holding the workpiece down on the table, whereas HMCs often require complex tombstone fixtures.
From a financial perspective, VMCs generally have a lower initial purchase price compared to HMCs of similar size. This makes them more accessible for small-to-medium-sized enterprises. While HMCs are often preferred for high-volume production due to their chip evacuation efficiency and pallet-changing capabilities, the VMC remains the "workhorse" of the industry due to its versatility. A Customized Vertical Machining Center can be tailored with specific table sizes and spindle configurations to bridge the gap between general-purpose milling and high-intensity production, providing a balanced solution for modern machine shops.
Feature | Vertical Machining Center (VMC) | Horizontal Machining Center (HMC) |
Visibility | Excellent; direct view of the tool | Limited; often obscured by fixtures |
Price | Lower initial investment | Higher initial investment |
Footprint | Compact | Large |
Best Used For | Large parts, plate work, prototyping | Multi-sided parts, high-volume production |
Gravity Impact | Helps in part clamping | Helps in chip evacuation |
A proper machining needs assessment involves analyzing your current and future production goals, workpiece dimensions, material types, and the complexity of the parts you intend to manufacture.
Before browsing specifications, you must define the primary "envelope" of your work. This includes the maximum X, Y, and Z travel required to accommodate your largest parts. If you are working on large mold bases, a larger table and higher weight capacity are non-negotiable. Conversely, if you specialize in small medical components, speed and precision might take precedence over raw table size. Material selection also plays a vital role; cutting hardened tool steel requires a machine with high torque and rigid box ways, while machining plastic or aluminum benefits from high-speed spindles and rapid traverses.
Furthermore, consider the production volume. For high-volume manufacturing, look for features that minimize non-cutting time, such as high-speed tool changers and rapid traverse rates. For versatile job shops, a BT40 Spindle Vertical CNC offers a great balance of power and speed, capable of handling a wide variety of tasks. Assessing these needs accurately prevents the common mistake of over-buying unnecessary features or, worse, under-buying a machine that cannot meet your tolerance requirements.
The axes of movement determine the geometric complexity a machine can handle, with standard VMCs offering 3-axis motion (X, Y, Z) and advanced models adding rotary axes (A, B) for multi-sided machining.
X-Axis: Horizontal movement of the table from left to right.
Y-Axis: Horizontal movement of the table from front to back.
Z-Axis: Vertical movement of the spindle head up and down.
4th Axis (Rotary): Usually an added rotary table (A-axis) that allows the part to rotate, facilitating machining on multiple faces without re-clamping.
5th Axis: Adds a second rotary motion (B-axis), enabling the tool to reach almost any angle on a spherical workspace.
Understanding these axes is crucial for choosing a machine that matches your part complexity. While a 3-axis VMC is sufficient for most flat or prismatic parts, adding a 4th axis can drastically reduce setup times by allowing the machine to access four sides of a part in a single operation. If your designs involve complex curved surfaces, such as turbine blades or high-end automotive molds, a 5-axis configuration becomes a necessity rather than a luxury.
Spindle speed and power are the primary drivers of material removal rates and surface finish quality, directly impacting the cycle times and the types of cutting tools you can effectively use.
The spindle serves two purposes: providing the torque necessary to drive large cutters through tough materials and providing the high RPMs needed for small-diameter tools to achieve a clean finish. For heavy-duty steel machining, a geared head spindle or a high-torque motor is essential to prevent stalling during deep cuts. On the other hand, high-speed machining of aluminum requires spindles capable of 12,000 to 20,000 RPM or more to maintain optimal surface footage.
It is also important to look at the spindle's duty cycle and cooling system. Continuous high-speed operation generates significant heat, which can lead to thermal expansion and loss of accuracy. Quality VMCs utilize oil-chilling systems to maintain a constant spindle temperature. When evaluating power, do not just look at the peak horsepower; examine the torque-to-RPM curve to ensure the machine has enough "grunt" at the lower speeds where heavy roughing typically occurs.
While simple two-axis machines are rare in modern CNC centers, the choice typically lies between the standard 3-axis configuration and the highly advanced 5-axis system which provides full contouring capabilities.
A 3-axis VMC moves the tool in the X, Y, and Z planes. This is the standard for the vast majority of industrial applications, including hole drilling, slotting, and surface milling. It is robust, easier to program, and generally requires less specialized training for operators. Most components found in general machinery can be manufactured efficiently on a 3-axis platform.
In contrast, a 5-axis VMC introduces two additional rotary axes. This allows the cutting tool to approach the workpiece from any direction. The primary benefit is "one-and-done" machining—the ability to complete a complex part in a single setup. This eliminates the cumulative errors that occur when moving a part between different fixtures and significantly reduces labor costs. Although the initial investment and programming complexity are higher, the efficiency gains for complex parts are transformative.
The choice between a standard VMC and a High-Speed Machining (HSM) center depends on whether your priority is heavy material removal or achieving extremely fine surface finishes with small tools.
Standard VMCs are characterized by their rigidity and torque. They are designed to handle larger tools and take deeper cuts in harder materials. These machines often use box ways or heavy-duty linear guides to handle the cutting forces associated with large-diameter face mills or heavy drilling. They are the ideal choice for general engineering and heavy industry where durability is the top priority.
High-Speed Machining centers, conversely, focus on "light and fast" cuts. They utilize high-RPM spindles and extremely high rapid-traverse rates. By taking many shallow cuts at high speeds, HSM centers can achieve mirror-like finishes and machine very thin-walled parts that would otherwise deform under the pressure of a standard machine. HSM is particularly popular in the mold and die industry, where reducing the need for manual polishing can save hundreds of hours of labor.
Specialized VMCs are engineered for niche applications, including bridge-type centers for oversized workpieces, drill-tap centers for high-speed small-hole production, and customized multi-spindle machines.
For manufacturers dealing with exceptionally large parts, a Bridge-Type Machining Center (also known as a Gantry Mill) provides the necessary stability. In these machines, the spindle moves along a bridge that spans the workpiece, allowing for a much larger work envelope than a standard C-frame VMC. This is essential for large-scale mold making or aerospace structural components.
Another specialized category is the Drill-Tap Center (DTC). These machines are optimized for speed and agility, often featuring 20,000 RPM spindles and extremely fast tool changes. They are designed specifically for the high-volume production of small electronic components or automotive parts that require frequent drilling and tapping. By selecting a machine tailored to your niche, you can achieve a level of efficiency that a general-purpose machine simply cannot match.
Regular maintenance is the most effective way to prevent unplanned downtime, involving a disciplined schedule of lubrication, filtration checks, and geometric inspections to ensure the machine remains within tolerance.
Daily maintenance should include cleaning chips from the work area, checking coolant levels, and ensuring the automatic lubrication system is functioning. Over time, coolant can become contaminated with "tramp oil" and bacteria, which can degrade its performance and cause skin irritation for operators. Using a high-quality oil skimmer and regularly testing the coolant concentration is vital for both machine health and operator safety.
On a monthly or quarterly basis, more in-depth checks are required. This includes inspecting the way-covers for damage, checking the tension of the drive belts, and cleaning the spindle taper. It is also wise to perform a ballbar test periodically. This diagnostic tool checks the circularity and geometric accuracy of the machine, identifying potential wear in the ball screws or guideways before it results in scrapped parts.
Partnering with a reliable service provider ensures that you have access to expert technicians and genuine spare parts, which is crucial for minimizing downtime during mechanical or electronic failures.
A CNC machine is a significant investment, and its value is only realized when it is running. When choosing a manufacturer or distributor, evaluate their local service presence. Do they have technicians in your region? How quickly can they ship critical components like spindle bearings or drive motors? A lower-priced machine can quickly become the most expensive asset in your shop if it sits idle for weeks waiting for a part from overseas.
Furthermore, consider the quality of the technical documentation provided. Clear wiring diagrams, exploded-view parts manuals, and comprehensive programming guides empower your internal maintenance team to handle minor issues without external help. A manufacturer that offers remote diagnostics can also be a lifesaver, allowing engineers to log into your machine's controller and troubleshoot software or parameter issues instantly.
Practical training for operators and programmers is essential to maximize the capabilities of a VMC, ensuring they can utilize advanced features like macro programming, high-speed look-ahead, and tool life management.
Modern CNC controllers are incredibly powerful, but they are only as effective as the person operating them. Investing in professional training ensures that your staff understands how to optimize cutting paths to reduce cycle times and extend tool life. This includes learning how to use the machine's "look-ahead" features, which allow the controller to analyze the upcoming G-code and adjust acceleration/deceleration to prevent gouging during high-speed moves.
Safety training is equally important. Operators must be well-versed in the machine's safety interlocks, emergency stop procedures, and proper tool loading techniques. A well-trained operator can also identify early warning signs of mechanical trouble, such as unusual vibrations or changes in spindle sound, allowing for proactive maintenance. By fostering a culture of continuous learning, you ensure that your shop stays competitive in an ever-evolving technological landscape.
