How To Cut Thread on Lathe Machine

Views: 0     Author: Site Editor     Publish Time: 2025-06-29      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Thread cutting on a lathe is a fundamental technique in machining, essential for creating the helical structures on bolts, screws, and other fasteners. Understanding how to accurately cut threads ensures the production of high-quality components that fit specific mechanical requirements. This guide is intended for machinists, workshop technicians, and hobbyists seeking to enhance their threading skills with a lathe machine.


Introduction to Thread Cutting on a Lathe

Threading is a precise operation used to produce threads on a cylindrical workpiece. Effective threading requires understanding both the lathe setup and the correct use of tools to ensure consistent and accurate results. This article will provide a comprehensive overview of how to set up a lathe for threading, select the right tools, and execute the process effectively.


Understanding the Key Terms

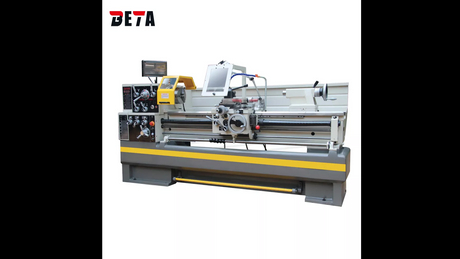

Lathe Machine

A lathe machine is a versatile apparatus used to shape materials by rotating the workpiece against cutting tools. It's crucial in machining tasks like turning, facing, and particularly threading.

Thread

A thread is a spiral structure that converts rotational movement into linear movement, characterized by parameters such as pitch, diameter, and angle.

Pitch

Pitch is the distance between corresponding points on consecutive threads. It's a vital factor in threading, defining how fine or coarse the thread is.


How To Cut Thread on a Lathe Machine

1. Set Up the Lathe Machine

Proper setup is essential for threading:

  • Secure the Workpiece: Clamp the workpiece firmly in a chuck or between the centers to ensure stability during threading.

  • Engage the Lead Screw: Ensure the lead screw is properly engaged with the gear train to synchronize the carriage movement with the spindle.

2. Select the Correct Cutting Tool

Choosing the right tool affects thread quality:

  • Thread Cutting Tool: Use a single-point cutting tool specifically designed for threading, with a profile that matches the thread type (e.g., 60° for metric threads).

  • Material Type: Select tools made from suitable materials like high-speed steel (HSS) or carbide for durability and precision.

3. Determine Thread Specifications

Before threading, identify the specifications:

  • Thread Pitch: Measure or specify the pitch needed for the thread using threading gauges.

  • Lead and Angle: Determine the lead (the distance the thread advances per revolution) and angle per required standards or designs.

4. Configure the Gear Train

Set the lathe’s change gears:

  • Gear Setup: Adjust the gears according to the threading chart on your lathe to match the desired thread pitch.

  • Check Engagement: Ensure proper engagement with the lead screw to maintain synchronous movement with the tool.

5. Align and Position the Cutting Tool

Align the cutting tool accurately:

  • Tool Height: Set the cutting tool at the correct center height, matching the spindle axis to prevent uneven cuts.

  • Tool Perpendicularity: Ensure the tool is perpendicular to the workpiece for precise cutting.

6. Perform Thread Cutting

Execute the threading operation:

  • Initial Pass: Start with a light pass to confirm setup accuracy.

  • Incremental Depth: Gradually increase the depth of cut on successive passes. Use the compound rest set angled at 29.5° for gradual engagement.

  • Thread Dial Use: Utilize the thread dial to engage the lead screw at the same point each pass, maintaining synchronization.

7. Verify and Finish the Thread

Ensure the thread meets specifications:

  • Measure Thread: Use a thread gauge or micrometer to verify pitch and dimension accuracy.

  • Deburring: Remove any sharp edges or burrs with a file or deburring tool to refine the thread.


Tips and Reminders

  • Safety Measures: Always wear safety goggles and keep clothing secured to avoid entanglement.

  • Practice and Patience: Begin with practice workpieces to refine your technique before working on critical projects.

  • Tool Maintenance: Regularly sharpen and maintain threading tools for quality finishes and extended tool life.


Conclusion

Cutting threads on a lathe machine requires precision, attention to detail, and the right setup. By mastering this technique, machinists can produce high-quality threaded components that meet specific mechanical demands. Utilizing the steps outlined, along with proper tool handling and safety measures, practitioners can efficiently execute threading operations with confidence and accuracy, enhancing their craftsmanship and operational capabilities.
