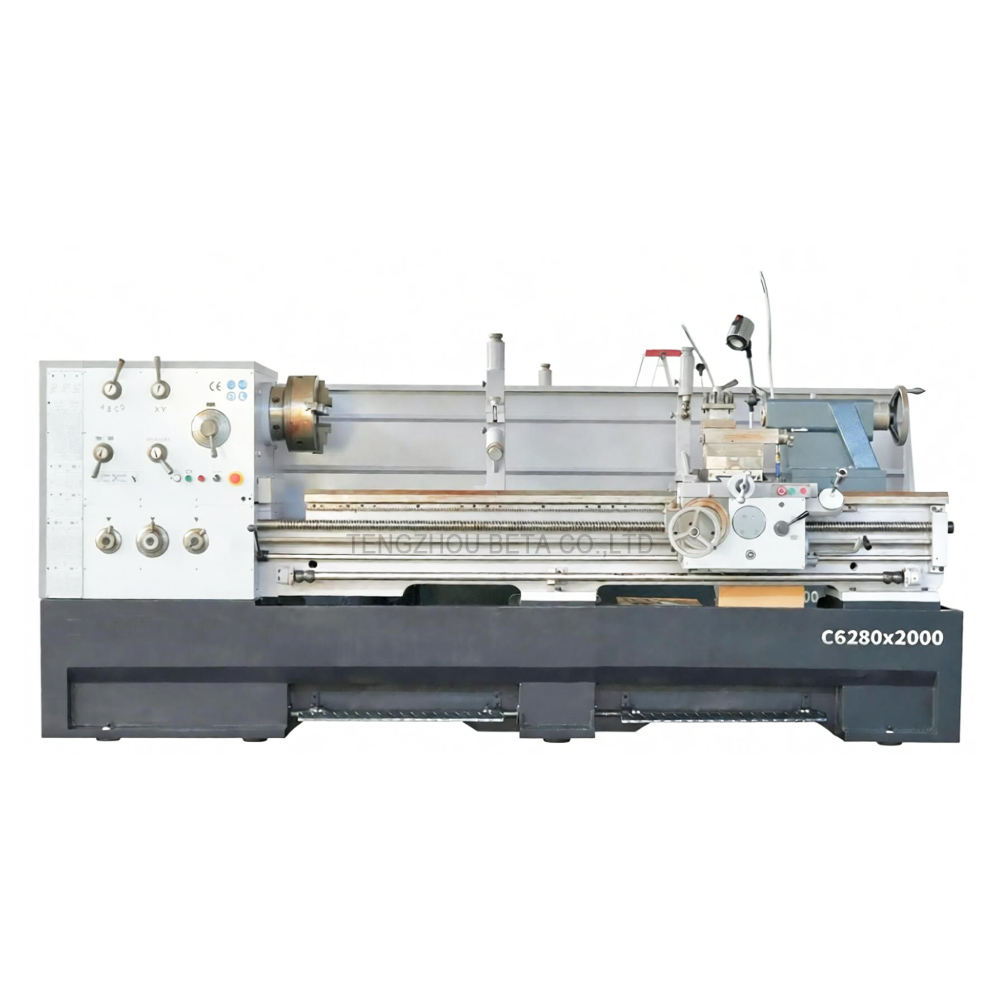

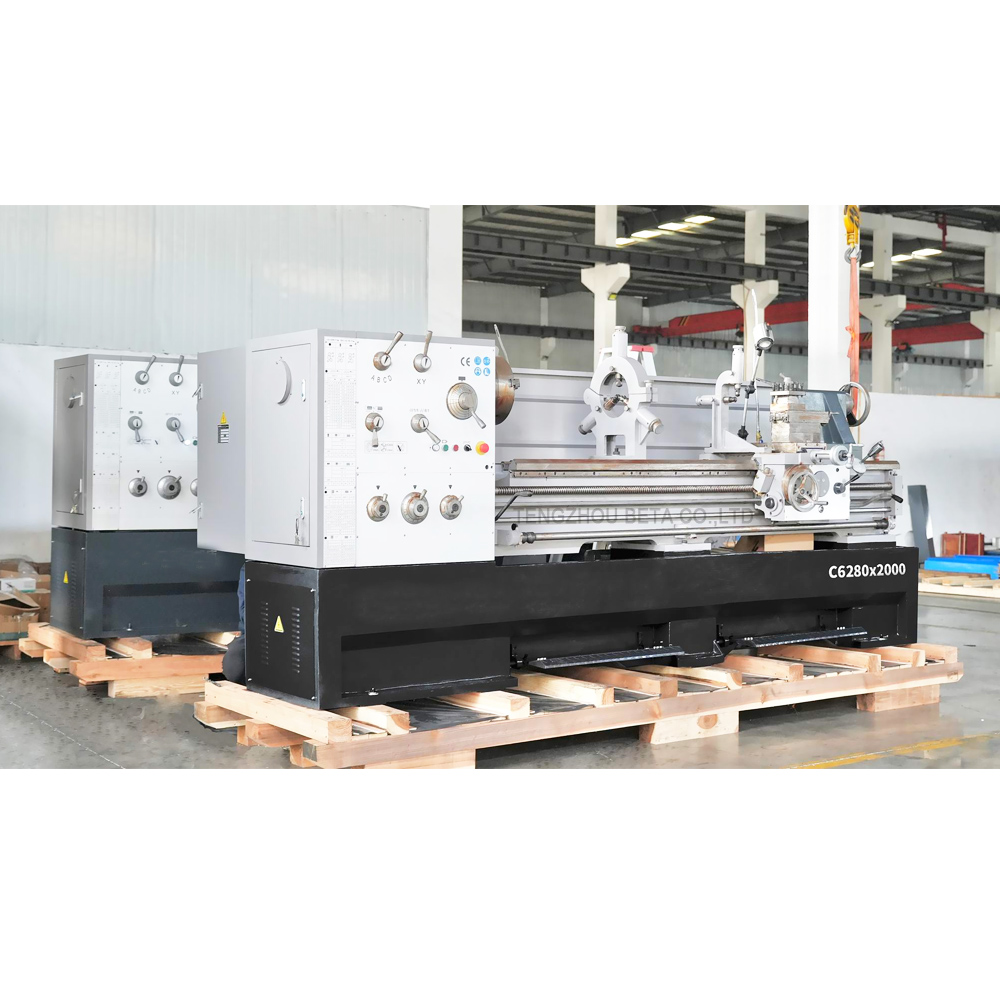

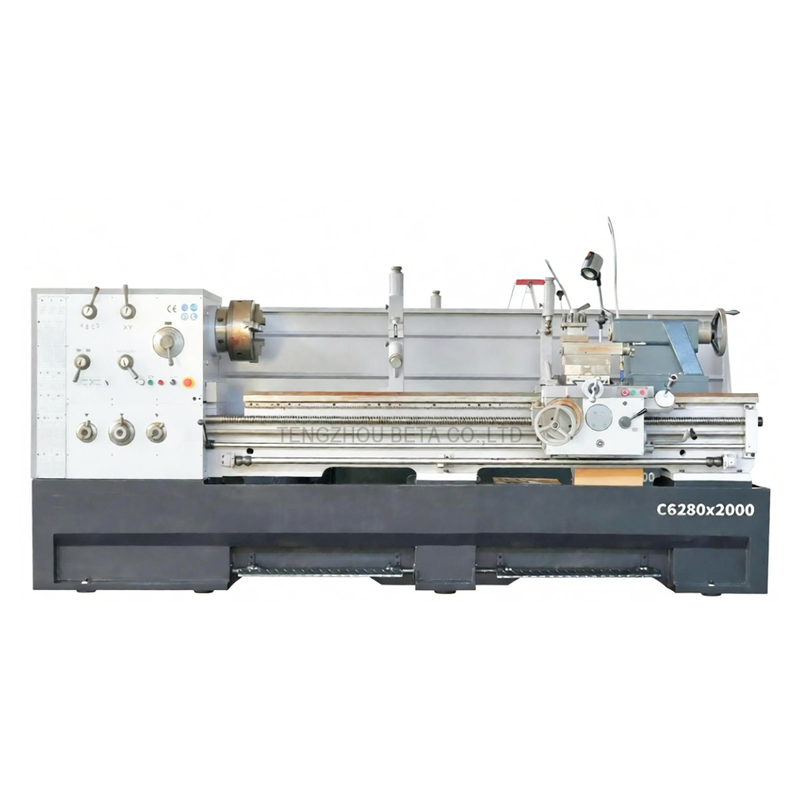

C6280
| Quantity: | |
|---|---|
Items | C6266 | C6280 | |
CAPACITY | |||
Swing Over Slide | Φ660mm / Φ800mm | ||
Swing Over Cross Slide | Φ440mm | Φ570mm | |
Swing in Gap Diameter | Φ900mm | Φ1035mm | |
Length of Gap | 250mm | ||
Center Height | 330mm | ||
Distance Between Centers | 1500mm/2000mm/3000mm | ||
Width of Bed | 400mm | 400mm | |
Max. Section of Tool | 25mm × 25mm | ||
Max. Travel of Cross Slide | 368mm | 420mm | |
Max. Travel of Compound Rest | 230mm | 230mm | |
HEADSTOCK | |||
Spindle Bore | Φ105mm | ||
Spindle Nose | D1-8 | ||
Taper of Spindle Bore | Φ113mm(1:20)/MT5 | ||
Spindle Speed Number | 16 | ||
Range of Spindle Speed | 25~1600rpm | 25~1600rpm | |
FEEDS AND THREADS | |||
Leadscrew Pitch | Φ40mm×2T.P.I. or Φ40mm×12mm | ||
Inch Threads Range | 7/16~80T.P.I. (54 kinds) | ||
Metric Threads Range | 0.45~120mm (54 kinds) | ||
Diametrical Pitches Range | 7/8~160DP (42 kinds) | ||
Module Pitches Range | 0.25~60MP (46 kinds) | ||
Longitudinal Feeds Range in Metric Lead Screw | 0.044~1.48mm/rev (25 kinds) | ||
Longitudinal Feeds Range in Inch Lead Screw | 0.00165"~0.05497"/rev (25 kinds) | ||
Cross Feeds Range in Metric Lead Screw | 0.022~0.74mm/rev (25 kinds) | ||
Cross Feeds Range in Inch Lead Screw | 0.00083"~0.02774"/rev (25 kinds) | ||

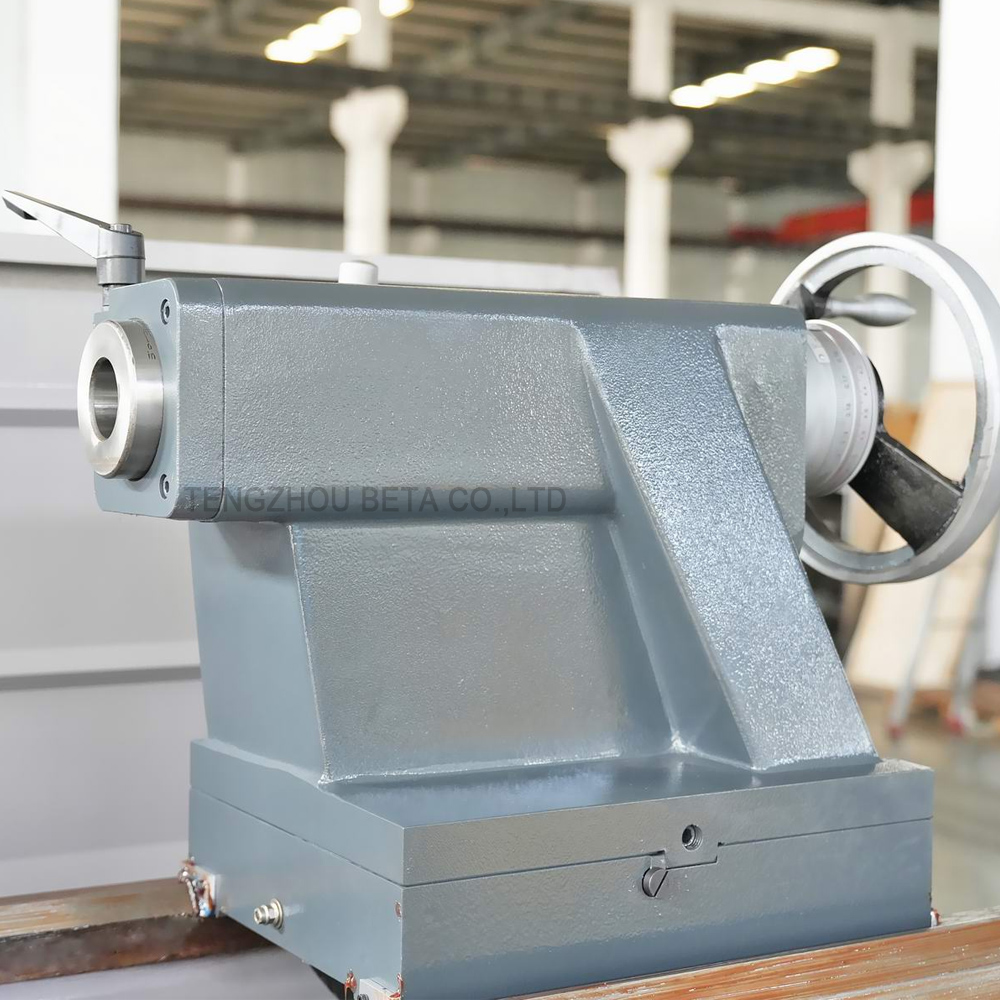

TAILSTOCK | |||
Quill travel | 235mm | ||
Quill diameter | Φ90mm | ||
Quill taper | MT5 | ||
MOTOR | |||
Main motor power | 7.5kW(10HP) | ||
Coolant pump power | 0.09kW (1/8HP) | ||
DIMENSION AND WEIGHT | |||
Overall Dimension (L×W×H) | 321x123x160cm (1500mm) | 321x123x167cm (1500mm) | |
371x123x160cm (2000mm) | 371x123x167cm (2000mm) | ||
471x123x160cm (3000mm) | 471x123x167cm (3000mm) | ||
Packing Size (L×W×H) | 324x114x184cm (1500mm) | 324x114x191cm (1500mm) | |
374x114x184cm (2000mm) | 374x114x191cm (2000mm) | ||
474x114x184cm (3000mm) | 474x114x191cm (3000mm) | ||
Net Weight | 3060/3345/3710kg | 3220/3505/3870kg | |
Gross Weight | 3535/3835/4310kg | 3705/4005/4480kg | |
1、 Functional and performance aspects: Strong adaptability, stable processing
Processing capability:
Our lathe C6280 is suitable for turning, drilling, tapping and other processing of medium and large workpieces, especially in the processing of "3000mm long workpieces" (such as automotive steering shafts, hydraulic cylinder bodies, etc.), meeting the precision machining needs of industries such as mechanical manufacturing and automotive parts.
Operating experience:
Some users have provided feedback that the C6280 horizontal lathe is easy to operate and can effectively improve efficiency in large-scale production.
Stiffness and accuracy:
This lathe bed is made of high-strength cast iron and has undergone aging treatment, ensuring stable machining accuracy; After optimizing the transmission system, the smooth operation has been recognized by users.
2、 Industry and market level: Widely applied and highly recognized
We offer C6280 lathes with different processing lengths of 1500/2000/3000mm, which are widely used in industries such as mechanical manufacturing, automobiles, and motorcycles. Users have provided feedback that the C6280 lathe has a "rich product range that can meet different turning processing needs", and its "bed material and process" (such as high-strength cast iron and time efficient processing) have been recognized by the industry, becoming a reliable choice for processing medium and large workpieces.
C6280-3000 heavy-duty ordinary lathe
Core positioning: A stable, reliable, comprehensive, and economical heavy-duty machining cornerstone designed specifically for long axis, large-diameter workpieces, and conventional rotary machining.
1、 Core Performance Advantage: Balance of Strength and Accuracy
1. Strong load-bearing and cutting capabilities
The maximum turning diameter of the bed body is 800mm, making it easy to handle large plates and flange components.
Maximum distance between the top: 3000mm, showcasing excellent bed rigidity and stability.
Powerful main motor power: Equipped with a standard 11kW main motor, it provides ample torque to ensure that power does not decay during heavy cutting.
2. Excellent accuracy and stability
High rigidity bed structure: Made of high-quality cast iron and designed with box shaped ribs, it has undergone aging treatment to completely eliminate internal stress, ensuring long-term use without deformation and excellent precision retention.
Stable and reliable feed system: The screw drive is smooth, equipped with interlocking safety devices, and has high repeatability positioning accuracy, suitable for precision turning and thread machining.
2、 Excellent operation and functional design
3. Humanized operation experience
3-meter center distance, wide processing range: perfectly suitable for rough and precision machining of long axis workpieces such as transmission shafts, screws, and hydraulic cylinder barrels.
Complete thread processing capabilities: metric, imperial, modular, and pitch threads can all be turned to meet diverse standard requirements.

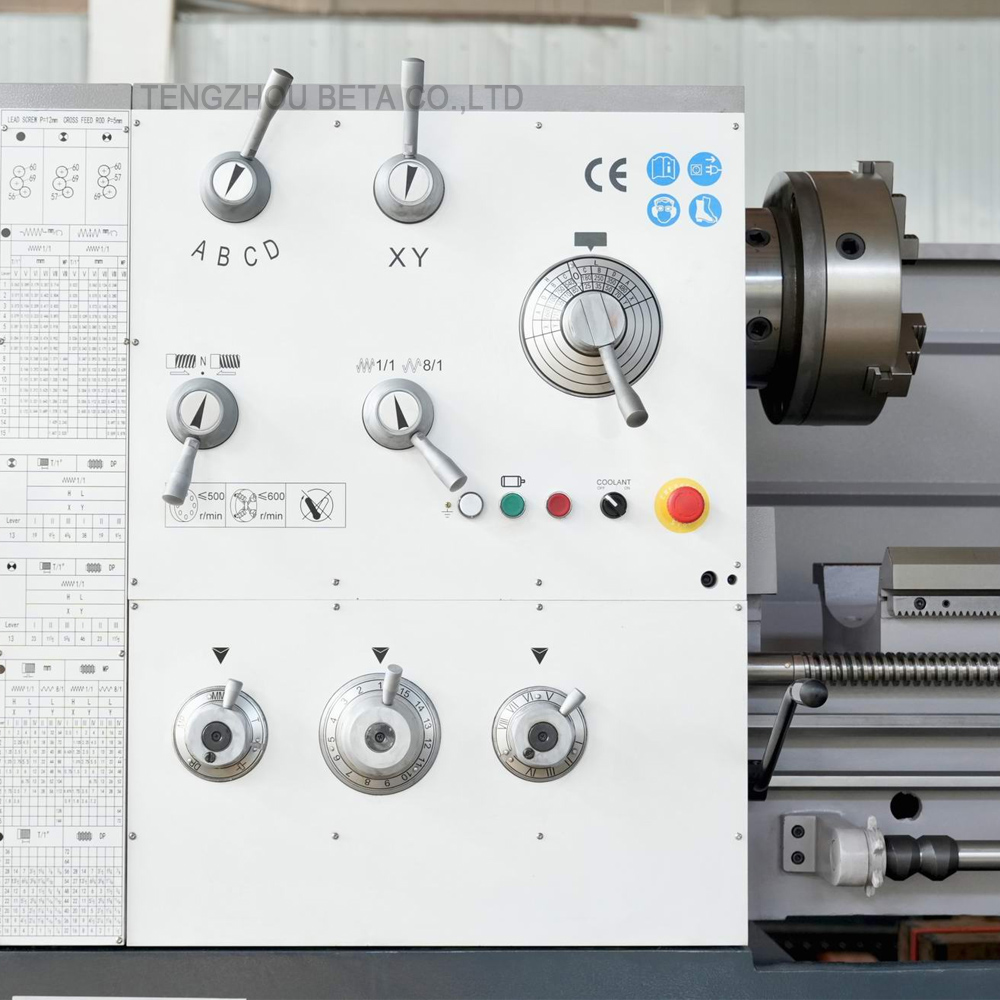

Convenient headstock gearbox speed change: operated by a handle, with a wide range of speed changes (16 speeds), suitable for cutting requirements of different materials and processes.
Wide and stable guide rails and skateboards: smooth movement, moderate operating force, reducing labor intensity for workers.
4. Comprehensive attachments and expandability
Complete standard configuration: usually includes a four jaw single action chuck, center frame, follower frame, cooling system, and a complete set of tools, which can be put into production by customers after being powered on.
Rich optional configurations: supporting the installation of digital display devices (to improve efficiency and reduce measurement time), different types of chuck tailstock, etc., to meet upgrade needs.
3、 Irreplaceable application value
5. Wide range of application areas
Ideal for single piece and small batch production in fields such as mining machinery, petrochemicals, heavy equipment, shipbuilding, electrical equipment, and maintenance workshops.
Typical machined parts: large shafts, screws, cylinder bodies, flanges, pipe molds, roller repairs, etc.
6. Excellent economic efficiency and investment return
High cost-effectiveness: Compared to CNC machine tools, this horizontal conventional lathe C6280 has a low purchase cost, simple maintenance, and relatively relaxed requirements for operator skills, making it a practical choice for medium-sized enterprises and entrepreneurs.
Durable and sturdy: With a classic structure, long-lasting durability, low failure rate, and a service life of several decades, it is the "meritorious equipment" of the workshop.
Low maintenance cost: The conventional lathe has an open structure, high standardization of components, easy maintenance and low cost.
The C6280-3000 lathe may not be the most high-end or intelligent, but it is definitely the most reliable, economical, and capable 'old ox' in your workshop. For the processing of conventional long axis and large diameter workpieces, this lathe C6280 can provide the most stable and reliable output with the lowest input cost, which is a wise choice to ensure the basic production capacity.
