For most small business manufacturers, CNC lathes are the superior investment due to their ability to deliver high precision, automated repeatability, and reduced long-term labor costs, whereas conventional lathes remain better suited for low-volume repairs, quick single-part setups, and budget-constrained prototyping environments.
To help you navigate this strategic machinery decision, we have compiled a comprehensive breakdown comparing both platforms across critical operational metrics. Below, you will find an outlined overview of the core discussion points covered in this analysis, followed by an in-depth examination of costs, precision capabilities, operational workflows, and real-world industrial applications.

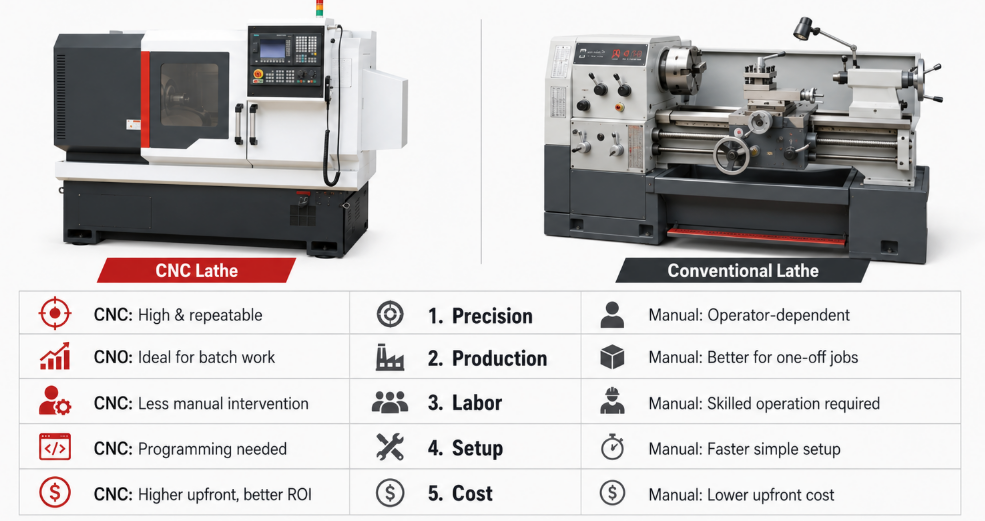

Section | Summary |
Understanding CNC Lathes | An exploration of automated computer numerical control turning technology, focusing on its digital control mechanisms and structural components. |
Understanding Conventional Lathes | An analysis of manual lathe machinery, emphasizing the role of operator skill, handwheel controls, and mechanical setups. |
Upfront Cost vs. Long-Term ROI | A detailed financial comparison looking at initial machine purchase prices, tooling costs, maintenance overhead, and operational return on investment. |
Precision, Accuracy, and Component Quality | A technical evaluation comparing the dimensional accuracy, structural rigidity, and tight-tolerance repeatability of both lathe types. |
Production Volume and Scaling Capabilities | An assessment of how each turning system handles low-volume prototyping versus high-volume batch production and scalability. |
Labor Requirements and Skill Dependencies | A discussion on the differences in labor costs, programming skill sets, manual craft dependency, and workforce availability. |
Making the Decision for Your Small Business | A strategic guide featuring a decision framework to help small business owners choose the right machine based on specific criteria. |
CNC lathes are automated manufacturing machines where high-precision cutting operations are executed via pre-programmed digital instructions running through a computer numerical control system.
A computer numerical control turning center replaces traditional manual levers and handwheels with digital servo motors, ball screws, and an industrial controller unit. The operator loads a digital design file, typically developed using Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software, which translates dimensional blueprints into numerical G-code and M-code sequences. These digital commands dictate the precise cutting speeds, feed rates, depth of cut, and multi-axis movement of the tool turret relative to the rotating workpiece. This digital framework completely isolates the physical cutting process from human variation, ensuring that every manufactured piece matches the exact structural specifications encoded in the software.
Modern automated turning centers feature rigid cast iron beds, linear guide rails, and high-performance spindles engineered to withstand intense thermal and mechanical stress. Many advanced units incorporate dynamic tool turrets that can hold multiple cutting tools simultaneously, enabling automated tool changes in a matter of seconds. This structural configuration eliminates the downtime associated with manual tool changes and readjustments. Furthermore, these machines are equipped with enclosed workspaces and high-pressure coolant delivery systems that optimize chip evacuation, reduce thermal deformation, and prolong tool life during continuous machining cycles.

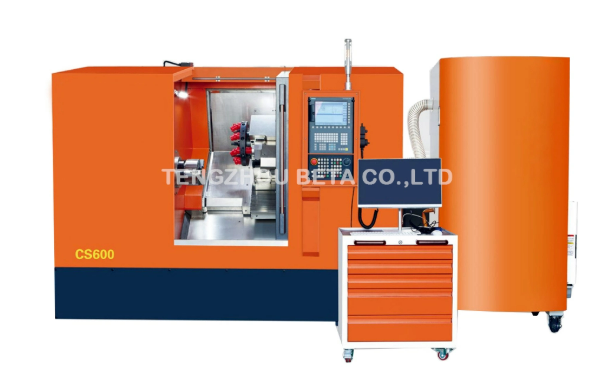

For small businesses targeting specific industrial niches, such as custom fluid power components or pneumatic sealing elements, investing in dedicated automated turning technology can drastically shorten manufacturing lead times. Implementing a specialized solution like a high-precision CNC turning lathe machine for seal making allows small enterprises to produce complex, tight-tolerance sealing components with exceptional surface finishes in a single, unattended operation. This automated approach eliminates the multi-step setup sequences required by manual machinery, positioning the small shop to compete effectively with larger manufacturing facilities.
Conventional lathes are purely mechanical machine tools that require a skilled operator to manually control the cutting tool movement using handwheels, levers, and mechanical dials to shape a rotating workpiece.
Traditional manual lathes function as the foundational pillar of classic machine shop environments, operating without digital software or automated programming interfaces. The machinist manually mounts the raw material into a chuck, selects the spindle speed by shifting mechanical gears inside the headstock, and physically engages the cutting tool via the cross-slide and carriage assemblies. Every dimensional change, taper cut, thread pitch cutting cycle, and surface facing operation requires the machinist to read mechanical graduated collars or rely on a digital readout (DRO) system while physically turning handwheels to manipulate the tool position.
The mechanical nature of these machines means that the final quality, dimensional tolerance, and surface finish of the machined component are directly dependent on the dexterity, visual judgment, and experience of the individual operator. Manual lathes utilize a lead screw mechanism to sync carriage travel with spindle rotation for threading operations, requiring the user to manually engage a half-nut lever at precise intervals. Because there are no automated tool changers, every single tool change, indexable insert replacement, and tool post angle readjustment must be performed by hand, stopping the spindle entirely between operations.
Despite the absence of digital automation, conventional lathes maintain an indispensable status in small-scale manufacturing, repair facilities, and maintenance departments worldwide. They do not require software training, G-code debugging, or complex electronic calibration routines. A manual turning machine can be powered on instantly to modify a shaft, chase damaged threads, or turn a simple bushing within minutes, making it highly effective for one-off tasks where the time spent creating a digital CNC program would outweigh the actual machining time.
While conventional lathes offer a significantly lower upfront acquisition cost, CNC lathes deliver a much higher long-term return on investment for businesses focused on growth, batch consistency, and production throughput.
Financial and Operational Metric | Conventional Manual Lathes | CNC Lathes / Turning Centers |
Initial Machinery Purchase Price | Low to Moderate | Moderate to High |
Tooling and Setup Infrastructure | Minimal specialized tooling required | Requires CAM software, post-processors, and rigid fixtures |
Daily Operator Labor Expenses | High (Requires highly paid, seasoned machinists) | Lower (One operator can manage multiple automated units) |
Scrap Rate and Material Waste Costs | Higher due to human error and manual tracking | Extremely low due to programmed paths and tool monitoring |
Long-Term Preventive Maintenance | Low (Basic lubrication and mechanical adjustments) | Moderate to High (Electronics, servo calibration, ball screws) |
Small businesses operating on limited start-up capital often favor conventional lathes because of their low initial entry barrier. A high-quality manual lathe can be purchased, wired, and put into production for a fraction of the cost of an automated turning center. There are no additional expenses for CAD/CAM software licensing, specialized programming workstations, or post-processor configurations. However, small businesses must recognize that this lower initial cost is an offset against future operational speed, as manual machines cannot run unattended or scale up output without a direct linear increase in labor hours.
Automated turning systems optimize material yield by executing precise tool paths that minimize tool chatter, edge chipping, and part dimensional errors. In manual operations, a single miscalculated turn of a handwheel can instantly ruin an expensive workpiece, resulting in costly scrap material and wasted production time. Automated systems execute identical tool movements continuously, dramatically reducing material waste. This predictability allows small businesses to accurately calculate material costs, optimize raw inventory purchases, and maintain consistent profit margins on every production run.
The long-term return on investment for automated machinery becomes evident when analyzing throughput and labor distribution. An automated lathe can complete intricate cycles in a fraction of the time required by a manual operator, allowing small businesses to accept higher-volume contracts that would otherwise overwhelm a manual workshop. Incorporating a robust industrial CNC lathe machine allows a small manufacturer to run continuous cycles, quickly offsetting the initial capital expenditure by dramatically increasing the monthly volume of billable, high-tolerance components delivered to clients.
CNC lathes provide unparalleled dimensional precision and sub-micron repeatability across hundreds of identical parts, whereas conventional lathes are constrained by human tolerance limitations and mechanical backlash.
Achieving tight dimensional tolerances on a conventional lathe requires an exceptional level of operator concentration and physical control. The operator must account for mechanical backlash in the cross-slide lead screws, monitor thermal expansion of the workpiece by hand, and manually measure dimensions using micrometers throughout the cutting process. While an expert machinist can achieve impressively tight tolerances on a single part, maintaining that exact precision across a batch of fifty or one hundred pieces is practically impossible due to physical fatigue, tool wear, and subtle variations in manual feed pressure.
Automated turning centers utilize closed-loop feedback systems, optical encoders, and high-precision preloaded ball screws to track tool positioning down to a fraction of a millimeter. The computer system constantly monitors the exact position of the cutting edge along the X and Z axes, compensating for micro-wear patterns and thermal shifts automatically. This structural rigidity and digital control eliminate mechanical play and backlash, allowing the machine to hold exceptionally tight tolerances consistently, regardless of whether it is machining the first part of the day or the five-hundreds part in a continuous run.
This extreme precision is critical when fabricating specialized components like industrial hydraulic seals, medical hardware, or aerospace fittings where even a minor dimensional deviation can cause a catastrophic system failure. Utilizing a highly specialized platform like a precision turning lathe machine for seals ensures that intricate internal profiles, complex radii, and precise groove geometries are cut identically every time. This level of quality assurance allows small businesses to earn certifications and secure premium contracts from demanding industrial clients who require strict compliance with design blueprints.
Conventional lathes excel at ultra-low volume prototyping and simple repair work, but CNC lathes are mandatory for small businesses looking to scale production volumes and optimize manufacturing cycle times.
When a small business focuses primarily on local repair work, prototyping, or custom maintenance contracts, the conventional lathe offers a distinct operational advantage. Preparing an automated machine requires designing a CAD model, generating toolpaths in a CAM environment, transferring the G-code to the controller, setting up tool offsets, and dry-running the program to prevent tool crashes. On a conventional lathe, a machinist can skip these digital preparation steps completely, chucking up a raw metal bar and machining a simple replacement pin or custom spacer bushing within ten minutes of receiving the order.
For small businesses looking to transition from a simple repair shop into a production supplier, manual methods quickly become an operational bottleneck. As batch sizes grow beyond a few pieces, the time spent manually swapping tools, measuring parts, and winding handwheels adds up significantly, causing long lead times. Automated turning centers handle batch manufacturing effortlessly. Once a program is fully optimized and verified, the operator only needs to load raw stock, press a cycle-start button, and unload the finished part, allowing for highly predictable manufacturing schedules and much faster delivery times.
The definitive advantage of automated turning infrastructure regarding scalability is the potential for "lights-out" or semi-unattended manufacturing operations. Advanced automated centers can be paired with bar feeders or automated part catchers, allowing the machinery to run through complex production queues with minimal operator intervention. A small business can maximize its daily output by utilizing a reliable high-precision CNC turning machine to run complex parts while the shop's technician focuses on other high-value tasks like client relations, quality control inspection, or secondary assembly processes.
Conventional manufacturing relies heavily on a shrinking pool of highly experienced manual machinists, whereas CNC workflows allow small businesses to leverage modern programming talent and optimize shop-floor labor.
The manufacturing sector is facing a significant skills gap, with seasoned manual machinists retiring faster than new apprentices are entering the trade. Operating a conventional lathe at a commercial level requires years of practical experience to develop an intuitive feel for material behavior, optimal cutting speeds, and manual tool feed pressures. Small businesses reliant on manual turning often find it challenging to recruit and retain technicians capable of holding tight tolerances consistently, making their core operations vulnerable to labor shortages and rising wages for specialized craftspeople.
In contrast, automated manufacturing shifts the primary skill set from manual craftsmanship to digital technical proficiency. Finding younger workers who are skilled in CAD/CAM software, 3D modeling, and digital G-code programming is often much easier for modern businesses. A single skilled programmer can design, simulate, and optimize turning programs for a whole fleet of automated machines. Once these programs are deployed, the on-site operators require less specialized machining experience to safely load raw materials, monitor tool wear indicators, and manage basic machine functions.
This shift in labor dynamics alters the operational cost structure for small manufacturing businesses. Instead of hiring multiple expensive manual machinists to boost output, a business can invest in automated machinery and optimize its workforce. A single technician can oversee multiple automated turning spindles simultaneously, drastically increasing the shop's per-capita output. This operational framework allows small businesses to scale up production and expand capacity without experiencing the recruitment bottlenecks associated with traditional, manually operated machine shops.
To select the optimal lathe for your small business, you must carefully evaluate your current production volumes, the structural complexity of your parts, and your long-term business growth plans.
If your product line consists primarily of basic straight shafts, simple stepped rollers, and straightforward threaded fasteners, a conventional lathe equipped with a high-quality digital readout system may handle your workload efficiently. However, if your components feature intricate organic curves, complex internal grooving patterns, precise multi-start threads, or specialized material requirements, manual machining becomes impractical. Automated turning centers excel at executing multi-axis interpolated paths, allowing your business to effortlessly manufacture advanced parts that are impossible to replicate using manual handwheels.
Small business owners must assess their local labor market and the space limitations of their workshop floor. If you already have access to experienced manual machinists and your business strategy focuses on low-volume, highly customized repair services, sticking with conventional equipment avoids complex software overhead. However, if you face a shortage of skilled manual labor and intend to establish a highly reliable, standardized production environment within a compact footprint, opting for automated machinery is the more strategic choice. This allows you to maximize your floor space and optimize labor costs.
Your choice of machinery should match where you want your business to be in three to five years. Relying entirely on conventional lathes can restrict your shop to low-volume niche markets and local prototype orders. Investing in modern automated equipment establishes a flexible, highly scalable production platform capable of handling high-volume supply contracts and delivering consistent part quality. Equipping your workshop with a versatile precision CNC turning lathe machine gives your small business the competitive edge needed to win commercial contracts, deliver exceptional component accuracy, and build a highly profitable manufacturing operation.
