Choosing the right CNC milling machine requires a thorough assessment of your production volume, workpiece dimensions, material hardness, and precision requirements. For heavy-duty industrial manufacturing, a high-rigidity vertical machining center featuring a premium spindle like a BT40 or BT50 taper, robust linear guideways or box ways, and an intelligent CNC controller is the optimal choice to ensure high accuracy and long-term stability.
This comprehensive guide will walk you through the essential technical specifications, structural components, and performance metrics necessary to make an informed investment. From assessing axis configurations to analyzing motor torques and choosing structural castings, we cover every technical variable to help you optimize your workshop floor.
Section | Summary |
Understanding the Fundamentals of a CNC Milling Machine | This section defines the core mechanics, structural design, and primary functions of industrial computer numerical control milling equipment. |
Key Types of CNC Milling Machines for Industrial Workshops | An in-depth classification comparing vertical machining centers, horizontal machining centers, and multi-axis gantry mills. |
Critical Technical Factors to Evaluate Before Purchasing | A detailed breakdown of structural rigidity, travel dimensions, spindle tapers, speed options, and torque distributions. |
The Importance of Spindle Taper and Speed in Precision Machining | An analysis of how BT40, BT50, and HSK spindles influence material removal rates, surface finish, and tool life. |
Evaluating Bed Structure and Guideway Types for Maximum Rigidity | A technical comparison between linear roller guideways and traditional solid box ways regarding damping capacities and speed. |
Advanced Axis Configurations Beyond Three-Axis Milling | Explaining how adding a 4th axis rotary table or full 5-axis simultaneous control eliminates complex manual setups. |
Selecting the Ideal CNC Control System for Seamless Operation | A review of mainstream industrial controllers like Fanuc, Siemens, and Mitsubishi regarding programming and network integration. |
Long-Term Cost Analysis and Return on Investment for Workshops | A strategic breakdown of initial procurement costs versus operational energy efficiency, tooling wear, and maintenance cycles. |

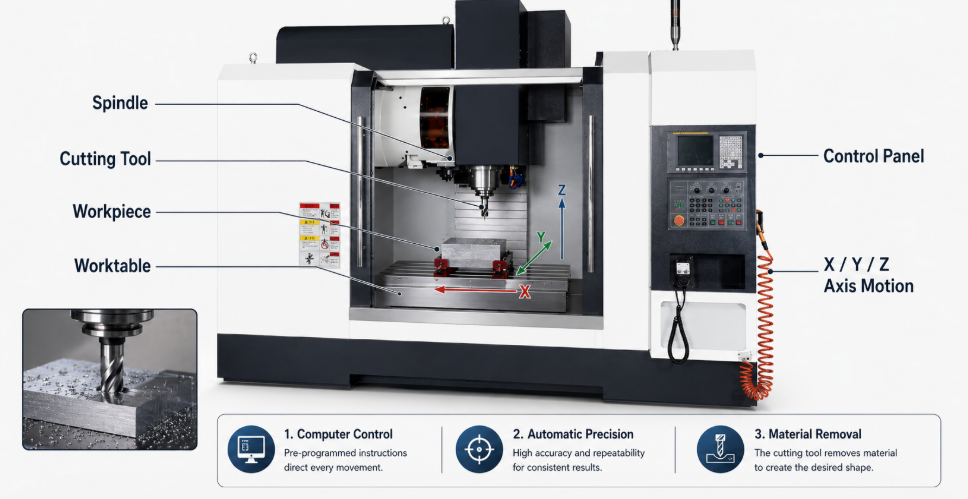

A CNC milling machine is an automated industrial machine tool that utilizes computer numerical control to precisely remove material from a workpiece using rotating cutting tools.
Industrial manufacturing relies heavily on these computerized systems to translate complex computer-aided design (CAD) files into physical objects. The machine interprets digital G-code commands to control the precise motion of the cutting tool relative to the raw material secured on the worktable. By automating the cutting, drilling, and pocketing processes, these systems eliminate human error, significantly reduce cycle times, and achieve repeatable tolerances within microns.
Modern industrial workshops utilize these machining centers to fabricate complex parts across aerospace, automotive, medical, and mold-making industries. The mechanical integrity of the machine, including its column design, base casting, and axis drive mechanism, dictates how effectively it can withstand heavy cutting forces without introducing structural deflection or chatter. Understanding these fundamental mechanical principles allows engineers to properly configure a machine for their specific production demands.
Integrating high-performance equipment on the factory floor is essential for maintaining a competitive edge in B2B supply chains. Industrial buyers frequently look for versatile platforms that balance structural mass with dynamic speed. Utilizing a heavy-duty industrial vertical machining center ensures that your shop floor can handle diverse workpieces ranging from lightweight aluminum alloys to hardened tool steels.
The primary categories of CNC milling machinery include Vertical Machining Centers, Horizontal Machining Centers, and Gantry Milling Machines, each serving distinct production roles.

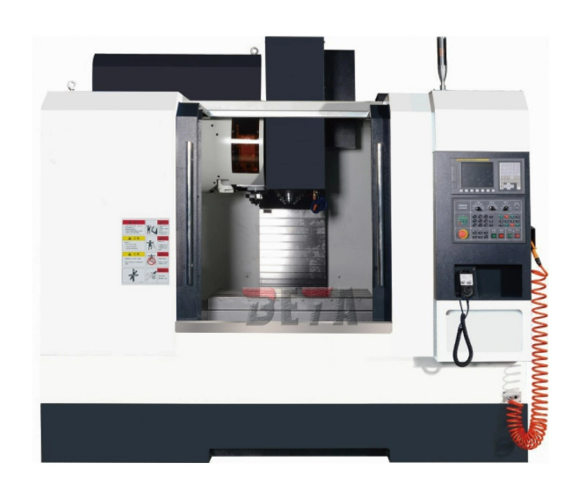

Vertical Machining Centers feature a vertically oriented spindle that approaches the workpiece mounted on a horizontal table. This configuration is widely popular due to its open accessibility, ease of setup, operator familiarity, and lower initial capital investment. It is highly effective for processing flat plates, molds, cavity dies, and components that require extensive top-surface profiling and detailed structural pocketing.
Horizontal Machining Centers utilize a horizontally oriented spindle and frequently incorporate integrated pallet changers and rotary indexers. This layout allows chips to naturally fall away from the cutting zone via gravity, preventing recutting of chips and extending tool life during deep cavity milling. While horizontal machines require a higher financial investment and more floor space, they offer unparalleled throughput for high-volume component production.
Gantry and bridge mills are designed for exceptionally large, heavy workpieces like locomotive frames, heavy industrial casting molds, and aerospace structural panels. These machines utilize a massive overhead bridge assembly that moves across rigid parallel rails, distributing massive structural loads evenly. For everyday precision machining of mid-sized industrial parts, workshops rely heavily on specialized platforms like the heavy duty CNC vertical milling machining center to manage medium-to-large workpieces efficiently.
Evaluating a CNC milling machine requires analyzing structural mass, axis travel limits, tool changer styles, positioning accuracies, and axis drive motor capacities.
The physical envelope of the machine—defined by its X, Y, and Z axis travel—must safely accommodate the maximum dimensions of your largest intended workpieces, including additional clearances for tool holders and work-holding fixtures. Furthermore, the structural material of the machine frame must be heavily evaluated. High-grade Meehanite cast iron that has undergone stress-relieving heat treatments is the industry standard for minimizing thermal deformation and absorbing high-frequency harmonic vibrations during aggressive cutting cycles.
Step | Core Phase | Key Technical Metric to Evaluate | Target Outcome |
1 | Workpiece Analysis | Match with X / Y / Z Axis Travel Capacity | Ensures physical envelope fit for parts and fixtures |
2 | Material Evaluation | Select Spindle Taper (BT40/BT50) & Torque | Determines heavy cutting and material removal capacity |
3 | Accuracy Target | Assess Linear Roller Guides vs Box Ways | Controls dimensional precision and surface finishes |
4 | Throughput Planning | Select Tool Changer Style (Twin-Arm vs Carousel) | Optimizes tool-to-tool speed and cycle reductions |
The Automatic Tool Changer system represents another critical bottleneck for cycle time efficiency. Workshops must choose between economy carousel-style tool changers and high-speed mechanical arm-type tool changers. Double-arm changers swap tools in a matter of seconds, drastically reducing non-cutting time across complex programs that require dozens of unique tooling geometries.
Technical Parameter | Entry-Level Workshop Mill | Heavy-Duty Industrial Machining Center |
X/Y/Z Axis Travel (mm) | 500*400*400 | 1100*600*600 and above |
Spindle Taper Interface | BT30 or Light BT40 | Heavy-Duty BT40 / BT50 Taper |
Base Structure Casting | Standard Gray Cast Iron | Premium Meehanite Cast Iron |
Tool Changer Capacity | 10 to 16 Station Carousel | 24 Station Twin-Arm Disk Type |
Rapid Traverse Rate | 15 to 24 m/min | 30 to 48 m/min |
Positioning Accuracy | 0.008mm | 0.005mm or better |
The spindle configuration determines the material removal rate, the allowable cutting tool diameter, and the overall surface finish quality achievable by the machine.
The mechanical interface of the spindle, typically designated by standardized tapers such as BT40 or BT50, dictates the structural rigidity of the connection between the machine and the cutting tool. A BT40 spindle balance provides an exceptional blend of rotational speed capability and torsional rigidity, making it suitable for machining aluminum, carbon steels, and alloy materials. In contrast, a massive BT50 spindle delivers immense low-end torque for hogging out large volumes of titanium, nickel-based superalloys, and heavy cast iron components.
Spindle drive mechanisms are split between direct-drive systems, belt-driven arrangements, and built-in motorized spindles. Belt-driven configurations are highly economical and durable, providing excellent torque multiplication at lower rotational speeds, which is highly beneficial for heavy drilling and rough pocketing. Direct-drive and built-in motorized spindles eliminate belt slippage, minimize vibration, and enable high-speed machining operations exceeding 10,000 to 15,000 RPM, which is critical for achieving mirror-like surface finishes on intricate mold cavities.
For workshops aiming to optimize heavy-duty mold manufacturing and precise metal cutting, selecting a platform with an enhanced spindle design is vital. Integrating a high-rigidity high speed BT40 spindle CNC machine allows operators to run high-feed mills and indexable carbide cutters without experiencing severe harmonic tool chatter. This stability directly impacts part accuracy, extends the operational life of expensive carbide cutting tools, and minimizes mechanical wear on the internal spindle bearings.
The design of the machine bed and the type of motion guideways utilized control the structural load capacity, axis acceleration rates, and dampening performance.
Industrial machine structures rely on two main types of linear motion systems: linear rolling guideways and hand-scraped box ways. Linear guideways use precision ball bearings or cylindrical roller bearings caged within hardened steel rails to deliver low coefficients of friction. This configuration enables rapid traverse speeds, responsive acceleration curves, and exceptionally precise positioning adjustments, which are required for high-speed dynamic milling paths.
Guideway Type | Core Mechanical Components | Key Performance Features | Primary Industrial Target |
Linear Guideway | Carriage Box→Rolling Ball/Roller Bearings→Hardened Steel Rail | Low friction, high rapid traverse speeds, lower thermal expansion | High-speed profiling, aluminum parts, precise light-duty components |
Traditional Box Way | Saddle Casting→ Hand-Scraped Turcite-B Layer →Solid Machine Bed Way | Massive contact area, exceptional vibration damping, extreme load support | Heavy duty roughing, hardened steel alloys, heavy interrupted cuts |
Box ways consist of solid, wide structural paths cast directly into the machine frame, which are precision ground and lined with specialized low-friction materials like Turcite-B. Box ways offer a massive surface contact area compared to linear rails, providing superior vibration-damping capacities under extreme cutting loads. This makes them ideal for deep, heavy-duty interrupted cuts in hardened metals, though they feature lower maximum rapid traverse rates due to higher friction.
Enhanced Vibration Absorption: Heavy casting designs disperse harmonic frequencies generated by large-diameter indexable face mills.
Reduced Thermal Expansion: Symmetric column structures prevent the centerline of the spindle from drifting as friction heat accumulates in the axis castings.
Optimized Structural Load Paths: Wide spacing between linear guideways prevents the worktable from deformation when carrying asymmetric workpieces.
Expanding a machining center to 4-axis or 5-axis simultaneous configurations allows workshops to machine complex, multi-sided geometries without manual part indexing.
Standard three-axis CNC milling machines move along the conventional X, Y, and Z Cartesian coordinates. While highly effective for a vast array of square and rectangular profiles, machining complex features on multiple faces requires operators to manually stop the machine, unclamp the workpiece, clean the fixtures, and re-zero the part coordinate system. This manual intervention introduces cumulative indexing errors and significantly inflates labor overhead.
Adding a CNC rotary table creates a 4-axis system capable of rotating the workpiece around the X-axis (A-axis) or Y-axis (B-axis). This setup enables continuous cylindrical engraving, complex spline cutting, and multi-sided prismatic machining in a single setup. True 5-axis simultaneous machining centers add an additional tilting axis, allowing the cutting tool to remain perfectly perpendicular to complex, contoured surfaces like turbine impellers, multi-port manifolds, and intricate orthopedic medical implants.
Implementing these multi-axis upgrades requires a structurally sound, wide-bed platform that can support the weight of heavy rotary tables without flexing. Choosing a customized vertical CNC milling machining center provides workshops with the foundational structural mass and space required to integrate auxiliary rotary components. This ensures that when your business scales from simple 3-axis prismatic plates to advanced 4-axis contoured geometries, the machine base remains rigid and accurate.
The CNC control system acts as the operational brain of the machine tool, processing block execution speeds, look-ahead parameters, and servo motor feedback loops.
Selecting a CNC controller requires balancing operator familiarity with technical processing capabilities. Industry-standard control units like Fanuc, Siemens, and Mitsubishi offer reliable platforms with extensive global networks for spare parts and technical support. A control system with advanced look-ahead block processing functions can analyze hundreds of blocks of G-code in advance, automatically adjustments axis acceleration and deceleration curves when traversing sharp corners or dense 3D surface meshes.
Modern CNC controllers also incorporate integrated tool management modules, thermal error compensation algorithms, and ethernet/industrial internet communication capabilities. These communication links enable real-time monitoring of machine utilization rates, remote diagnosis of alarm codes, and direct loading of heavy CAM programs from central engineering servers. This digital connectivity ensures that the machine tool integrates into broader enterprise resource planning (ERP) systems.
Stage | Processing Layer | Function Description | Data/Action Transferred |
1 | Input Source | Engineering CAD/CAM Software | Generates and sends G-code program via Ethernet or USB |
2 | Logic Brain | CNC Controller Core Engine | Executes Look-Ahead Processing & real-time thermal compensation |
3 | Execution Drive | Servo System Amplifiers | Transmits electricity and position commands to drive modules |
4 | Kinetic Output | High-Torque AC Axis Motors | Drives precision ballscrews to move axes with zero backlash |
Furthermore, user-friendly human-machine interfaces (HMIs) allow operators to quickly perform manual tool length measurements, set up workpiece datums via electronic touch probes, and edit G-code text directly on the shop floor. A robust control system paired with fine-tuned AC servo motors guarantees that commands are translated into physical movement with zero backlash and high tracking accuracy.
A professional CNC machine investment must calculate initial capital expenditure against long-term electrical power consumption, tooling wear, and maintenance requirements.
When evaluating the acquisition of industrial machinery, workshops must look beyond the initial purchase price to calculate the true Total Cost of Ownership (TCO). Lower-tier machines with thin, lightweight frames may have an appealing upfront price tag, but they often incur higher operating costs due to frequent mechanical breakdowns, accelerated cutting tool wear from continuous chatter, and poor part accuracy that leads to high scrap rates. Investing in a heavy-duty, cast-iron frame machine ensures long-term operational stability.
Operational Factor | Component Input | Mechanism | Long-Term Value Result |
Structural Integrity | High-Rigidity Meehanite Bed | Minimizes harmonic cutting micro-vibrations | Extends machine lifespan and maintains geometric tolerances |
Tooling Overhead | Uniform Chip Loading | Eliminates severe tool chatter on carbide edges | Lowers annual tooling wear expenses by up to 30% |
Quality Control | Stable Machining Environment | Drastically reduces part dimensional drift | Minimizes scrap rates, increasing profit margins per hour |
Optimized structural dampening directly reduces tool wear costs. When a machining center effectively dampens micro-vibrations, the delicate cutting edges of solid carbide endmills and indexable inserts experience uniform chip loads, preventing premature chipping and extending tool life by up to 30%. Additionally, energy-efficient inverter systems on high-torque spindles and auxiliary coolant pumps lower daily electrical draw across multi-shift operations.
For facilities focused on maximizing long-term production revenue, choosing a heavily built machine platform yields a rapid return on investment. Selecting a robust, high-specification system like a heavy duty BT40 spindle vertical CNC guarantees that your workshop can consistently run demanding cycles without costly mechanical downtime, helping your facility secure high-margin manufacturing contracts year after year.
To assist procurement teams and workshop managers in finalizing their machinery specifications, the following operational checklist breaks down the critical mechanical requirements based on the targeted industrial applications:
Heavy Mold & Cavity Die Production:
Prioritize Meehanite HT300 cast iron frames for maximum vibration dampening.
Select a spindle with an integrated oil-chiller unit to mitigate thermal growth during 24-hour cutting cycles.
Utilize high-precision linear roller guideways to ensure smooth profiling transitions without facet marks.
High-Volume Component Manufacturing:
Specify a twin-arm mechanical tool changer with a tool-to-tool change time under 2.5 seconds.
Integrate a high-pressure through-spindle coolant (TSC) system operating at 20 to 70 bar to clear deep pockets.
Select dual-enclosure chip augers paired with a hinge-type chip conveyor to automate waste material removal.
Hardened Alloy & Titanium Aerostructure Machining:
Opt for a high-torque, dual-speed gear driven or high-torque direct-drive spindle configuration.
Ensure all linear axes utilize heavy-duty pretensioned double-nut ballscrews to eliminate mechanical backlash.
Verify the AC servo motors provide high continuous stalling torque values to handle constant axis resistance.
