Industrial metal processing facilities maximize production efficiency and structural integrity by deploying advanced cutting and bending systems that streamline the transition from raw flat plates to complex cylindrical or curved components.
Understanding how these fabrication systems interact within a unified production line is essential for optimizing manufacturing workflows. The following comprehensive guide examines the technical mechanics, industrial applications, and operational configurations of industrial plate processing systems, demonstrating how high-performance machinery drives cost efficiency and quality assurance in modern engineering sectors.
Introduction to Sheet Metal Fabrication
What is a Shearing Machine and How Does It Function
The Mechanics and Applications of a Rolling Machine
Key Differences Between Shearing and Bending Workflows
Synergy of Cutting and Rolling in Automated Production
Industrial Applications of Processed Sheet Metal Components
Choosing the Right Equipment for High-Volume Manufacturing
Sheet metal fabrication serves as the foundational manufacturing process for global infrastructure, relying on advanced mechanical force to alter the structural form of raw metal alloys.
The modern fabrication ecosystem requires an intricate balance between structural material characteristics and mechanical deformation limits. Metal plates of varying thicknesses must undergo systematic processing steps to ensure that the finished components possess the precise geometric dimensions required by structural engineers. Without robust mechanical systems capable of delivering thousands of kilonewtons of concentrated force, processing heavy-gauge industrial materials would remain an inefficient, labor-intensive bottleneck.
To maintain a competitive edge, contemporary production facilities have transitioned from manual workshop methods to fully integrated, automated production lines. These lines incorporate advanced computing control systems that synchronize material handling, precision separation, and structural forming into a continuous workflow. By minimizing human intervention and optimizing the mechanical sequence, operations can achieve repeatable tolerances within fractions of a millimeter across massive production batches.
Furthermore, the integration of specialized equipment within a single manufacturing line directly influences structural material yield and overall operational profitability. Factories must carefully calculate material nesting patterns and mechanical stress distributions during both the cutting and forming phases. Modern production management relies on these industrial systems to eliminate structural defects, reduce scrap generation, and accelerate the cycle time required to deliver finished heavy-duty components to market.

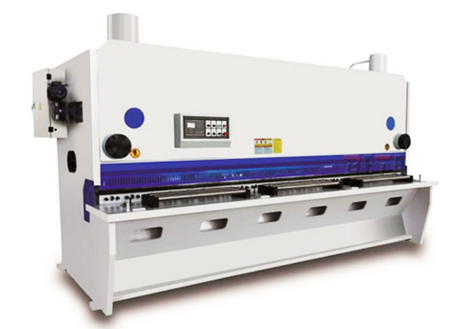

A Shearing Machine functions as a heavy-duty industrial cutting tool designed to separate sheet metal plates along a linear path by applying opposing mechanical shear forces.
Industrial cutting operations utilize high-pressure hydraulic systems to drive an upper blade through a stationary lower blade, overcoming the ultimate tensile strength of the metal plate. This precise mechanical separation requires exact blade gap adjustments tailored to the specific material thickness and tensile properties to prevent burrs, edge deformation, or structural micro-cracking along the cut profile. Modern production lines utilize these systems to quickly reduce massive mill-delivered plates into manageable blank sizes for subsequent manufacturing processes.
Within high-capacity manufacturing lines, the stability of the cutting equipment determines the quality of every subsequent fabrication step. Implementing a high-performance QC11Y Hydraulic Sheet Metal Guillotine Cutting Shearing Machine For Plate provides production floors with the rigidity and hydraulic power necessary to achieve square, weld-ready edges on heavy-gauge carbon steel and stainless steel alloys. These industrial systems utilize robust steel frame construction, automated rake angle adjustment, and precise CNC back-gauge positioning to ensure operational repeatability across multi-shift production schedules.
Superior Edge Straightness: The linear cutting motion minimizes material twisting and cambering, providing an ideal edge profile for automated welding operations.
Rapid Production Cycle Times: Hydraulic stroke regulation allows for rapid processing speeds, significantly outperforming thermal cutting methods on straight-line profiles.
Minimal Material Heat Distortion: Unlike laser or plasma cutting, mechanical shearing does not introduce heat-affected zones, preserving the original metallurgical properties of the metal alloy.
Shearing Type | Structural Mechanism | Material Thickness Capacity | Primary Advantage |
Guillotine Shears | Vertical linear blade travel | Medium to ultra-thick plates | Adjustable rake angle prevents material twisting |
Swing Beam Shears | Arc-shaped blade travel | Light to medium plates | Simpler mechanical construction with rapid return strokes |
A Rolling Machine operates as a structural forming system that utilizes multiple rotating work rolls to continuously bend flat metal sheets into cylindrical, conical, or curved profiles.
The core mechanism involves passing a metal plate between strategically positioned work rolls, where the application of progressive hydraulic pressure forces the material past its elastic limit into a state of permanent plastic deformation. By controlling the vertical position of the adjustable rolls relative to the driving rolls, the system precisely dictates the internal radius of the formed cylinder. This process is critical for producing structural pipes, pressure vessels, storage tanks, and aerodynamic components used across various heavy industries.
To achieve maximum precision when processing thick structural plates, factories implement automated multi-roll systems that can complete pre-bending and final rolling in a single pass without removing the plate from the machine. Utilizing an advanced Automatic CNC Hydraulic Metal Plate Rolling Machine allows manufacturing plants to eliminate flat spots on the leading and trailing edges of the plate through integrated hydraulic pre-bending. These programmable systems synchronize roll rotation and hydraulic downward force via CNC interfaces, ensuring uniform curvature and perfect seam alignment for subsequent welding.
Three-Roll Asymmetric Systems: Ideal for light to medium plate thicknesses, offering reliable pre-bending capabilities with manual or digital positioning.
Three-Roll Variable Geometry Systems: Designed for heavy plate fabrication, where the lower rolls move horizontally and the upper roll moves vertically to handle extreme thicknesses.
Four-Roll Symmetric Configurations: The industry standard for high automation, utilizing a top roll, a bottom pinch roll, and two lateral bending rolls to lock the material securely in place throughout the forming cycle.
The primary distinction between shearing and bending workflows lies in whether the industrial process intends to permanently separate the material or geometrically deform it.
Understanding how these two mechanical actions interact is fundamental to maintaining dimensional control along an industrial manufacturing line. The cutting phase focuses entirely on overcoming the structural shear strength of the metal to achieve clean separation, while the forming phase must carefully manage the material's yield strength and springback characteristics to achieve precise structural geometry. Misalignments or structural defects introduced during the initial separation stage will directly compound during the subsequent forming stage.
Manufacturing Parameter | Linear Shearing Operations | Cylindrical Rolling Operations |
Primary Structural Objective | Linear material separation and blank sizing | Continuous plastic deformation and contouring |
Applied Mechanical Stress | Concentrated shear stress exceeding ultimate tensile limit | Compressive and tensile stresses beyond material yield point |
Critical Tooling Variables | Blade clearance, rake angle, and back-gauge accuracy | Roll diameter, spatial orientation, and hydraulic pinch force |
Geometric Output | Flat, squared blanks with straight edges | Cylindrical shells, cones, and variable radius curves |
When a raw metal plate enters a high-capacity Shearing Machine, the structural focus is entirely on localized mechanical force concentration. The upper blade descends with high tonnage, penetrating a fraction of the material thickness before the remaining section fractures cleanly along the intended line. This process requires rigid clamping systems to prevent the plate from shifting under the immense downward forces generated by the hydraulic cylinders.
Conversely, when the processed blank is transferred to an industrial Rolling Machine, the mechanical forces must be distributed evenly across the surface area of the plate. The material experiences simultaneous outer-surface tension and inner-surface compression as it conforms to the radius dictated by the work rolls. Operators must precisely calculate the material's springback value, which is the tendency of the metal to partially return to its original flat shape after the bending force is released, to ensure the final cylinder meets strict industrial tolerances.

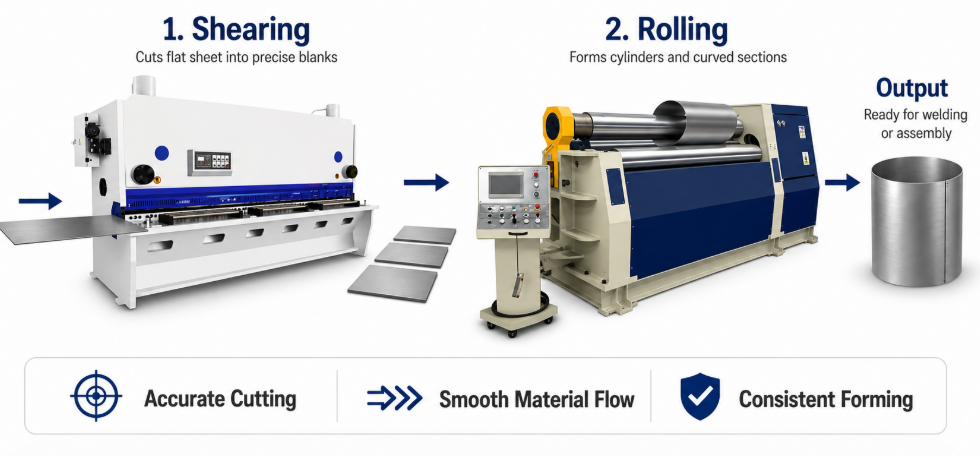

The integration of synchronized cutting and rolling systems within an automated production line establishes a highly efficient manufacturing workflow that bridges the gap between raw plate stocks and finished circular structures.
In high-efficiency fabrication facilities, these two distinct operations are no longer treated as isolated machine stations. Instead, they are linked via automated material handling conveyors, overhead vacuum lifting systems, and unified manufacturing execution software. This digital and mechanical synchronization ensures that as soon as a plate is squared and trimmed to size by the automated cutting system, it is immediately routed to the forming station without manual crane staging or floor transportation delays.
By matching the processing cycle time of a heavy-duty Shearing Machine with the operational speed of a high-speed Rolling Machine, production managers can eliminate floor bottlenecks and optimize shop floor layout space. The automated line ensures that the edges prepared by the cutting blade match the exact entry alignment required by the bending rolls. This level of precise alignment prevents axial twisting and spiral defects during the cylinder forming process, which significantly reduces the time required for subsequent longitudinal seam welding.
Furthermore, this operational synergy yields substantial financial returns by minimizing scrap material and maximizing energy efficiency. Modern CNC systems allow for real-time data communication between the cutting and bending machinery, allowing the line to dynamically adjust parameters if a material thickness variance is detected. The continuous flow of materials keeps both hydraulic systems operating at their optimal duty cycles, reducing idle power consumption and increasing the overall equipment effectiveness of the entire factory asset portfolio.
Processed sheet metal components formed through synchronized cutting and bending systems are essential structural building blocks for heavy infrastructure, energy generation, and transport equipment manufacturing.
The ability to rapidly transform massive, flat high-strength steel plates into precise cylindrical or conical sections enables the mass production of heavy-duty industrial goods. These components must withstand extreme internal pressures, environmental corrosion, and cyclical mechanical stresses over long operational lifespans. Consequently, industries demand absolute consistency in both the edge preparation and the curvature uniformity of the fabricated metal structures.
Petrochemical and Energy Storage: Fabrication of high-pressure storage vessels, liquefied natural gas tanks, and cross-country industrial pipelines requiring perfect circularity.
Maritime and Shipbuilding: Production of curved hull plating, structural internal pillars, and heavy-duty mast sections for commercial transport vessels.
Wind Energy Infrastructure: Manufacturing of massive tapered steel sections used to construct utility-scale onshore and offshore wind turbine towers.
In the pressure vessel sector, for example, the initial blank processing completed by an industrial Shearing Machine dictates the absolute squareness of the shell plate. If the edges deviate even slightly from a perfect ninety-degree angle, the subsequent cylinder formed by a heavy-duty Rolling Machine will exhibit a structural offset known as a "clothespin effect" along the longitudinal joint. By utilizing precision machinery to execute both stages, manufacturers ensure that the subsequent automated sub-arc welding systems can deposit clean, defect-free weld beads that easily pass mandatory non-destructive radiographic testing.
Selecting the optimal industrial fabrication machinery requires a precise evaluation of maximum material thickness, structural yield strength, and the intended volume of daily production output.
Procurement engineers must look beyond the initial capital expenditure and analyze the long-term operational costs, structural frame deflection ratings, and control system capabilities of potential machinery. Purchasing under-specified equipment leads to premature structural fatigue of the machine frame, frequent hydraulic seal failures, and unacceptable component rejection rates due to excessive deflection. Conversely, over-specifying machinery without clear production justification ties up valuable investment capital that could be used elsewhere on the production floor.
When assessing cutting equipment, factories must match the machine's maximum rated capacity against their highest tensile strength materials. Investing in a robust Shearing Machine equipped with rapid blade gap adjustment and automated stroke control ensures the shop floor can seamlessly pivot between thin aluminum sheets and thick carbon steel plates without extensive manual setup delays. The inclusion of high-quality, multi-edge tool steel blades further reduces long-term maintenance costs by extending the operational window between blade grindings.
Similarly, when evaluating a high-capacity Rolling Machine, the decision between three-roll and four-roll architecture must be guided by the required level of automation and geometric precision. A four-roll CNC system is highly recommended for facilities targeting high-volume, automated production, as it holds the plate securely against the top roll throughout the entire cycle, allowing for precise tracking and predictable edge pre-bending. By matching the mechanical capabilities of both the cutting and forming assets to the specific technical demands of their contract portfolio, manufacturing enterprises can ensure reliable, high-margin production performance for decades to come.
Modern sheet metal production lines achieve high efficiency and strict quality compliance through the strategic deployment of heavy-duty cutting and forming systems. As demonstrated throughout this technical analysis, the operational accuracy of the initial cutting phase directly determines the success of the subsequent cylindrical or conical forming phase. By transitioning to highly automated, CNC-driven hydraulic machinery, industrial fabrication plants can significantly reduce material waste, eliminate production bottlenecks, and deliver components that meet the rigorous standards of global engineering sectors. Investing in a matched pair of high-performance processing systems remains a definitive strategy for maximizing long-term profitability and operational capacity on the modern factory floor.
