W12SNC-6x2500
| Quantity: | |
|---|---|

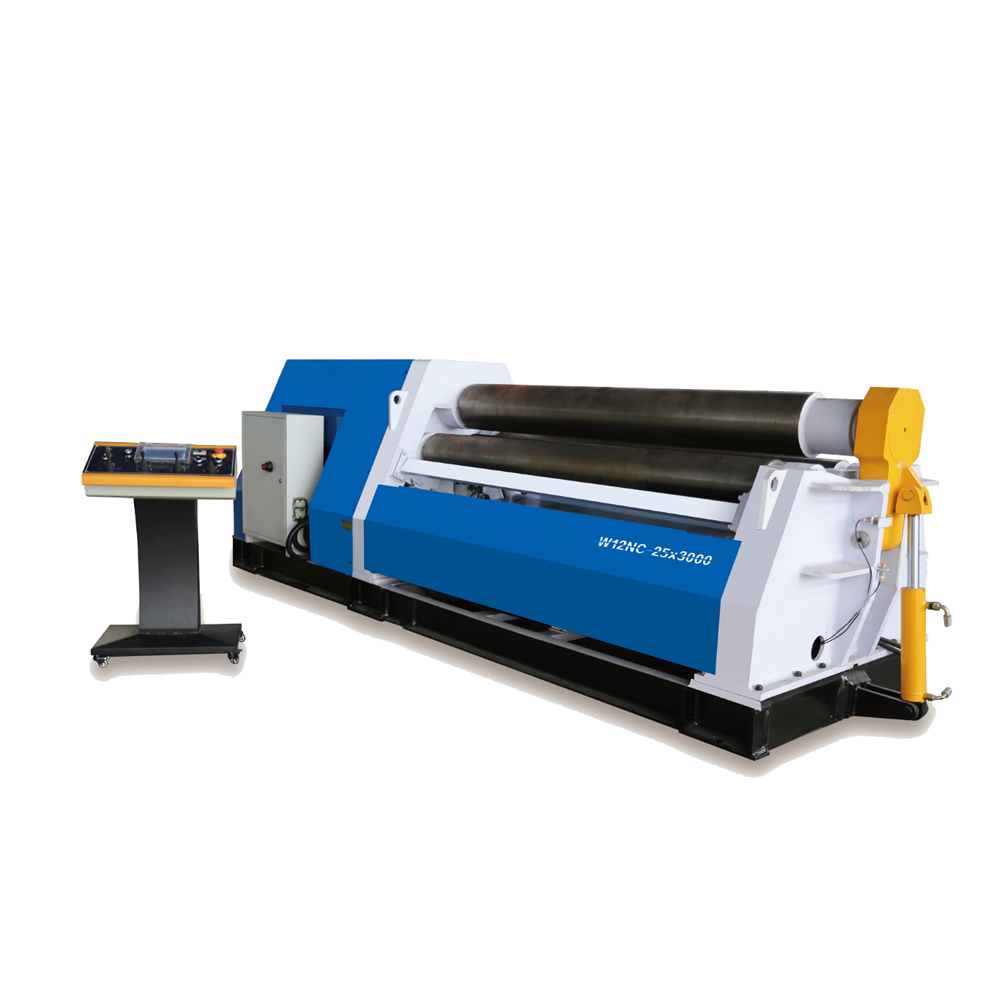

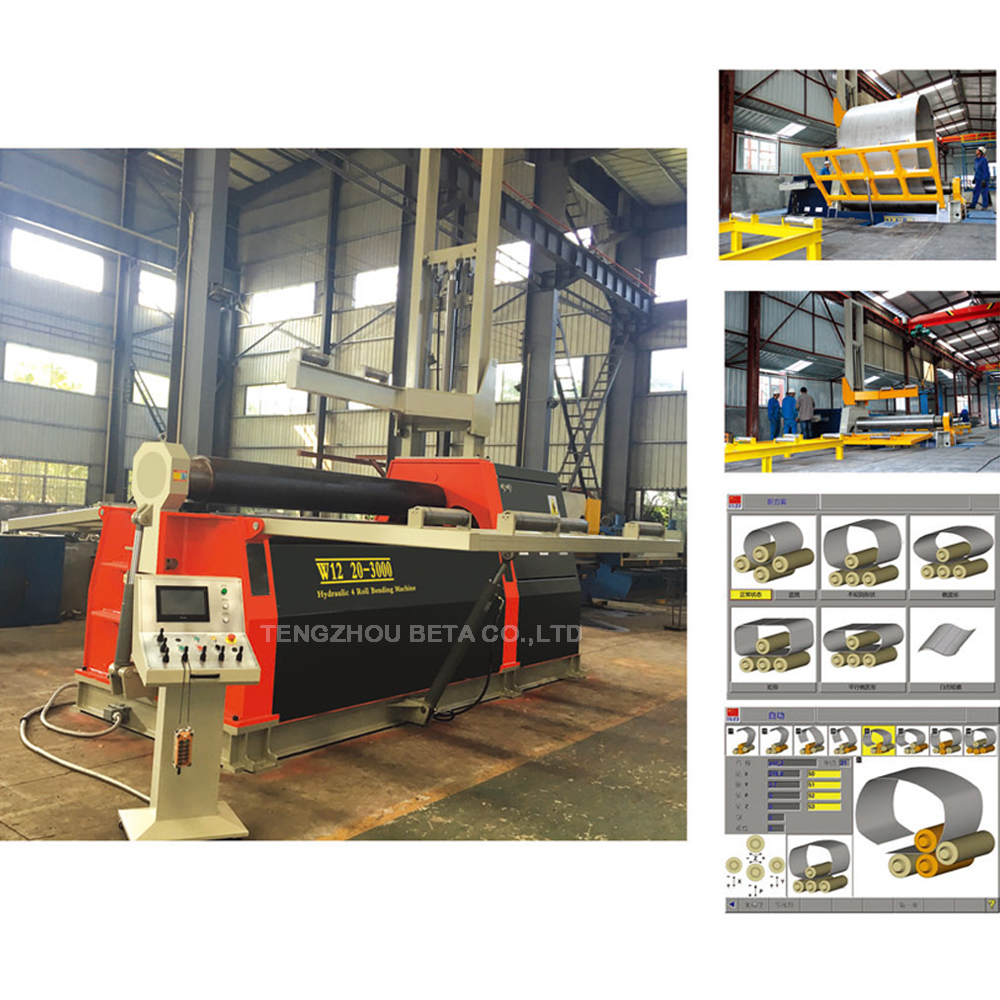

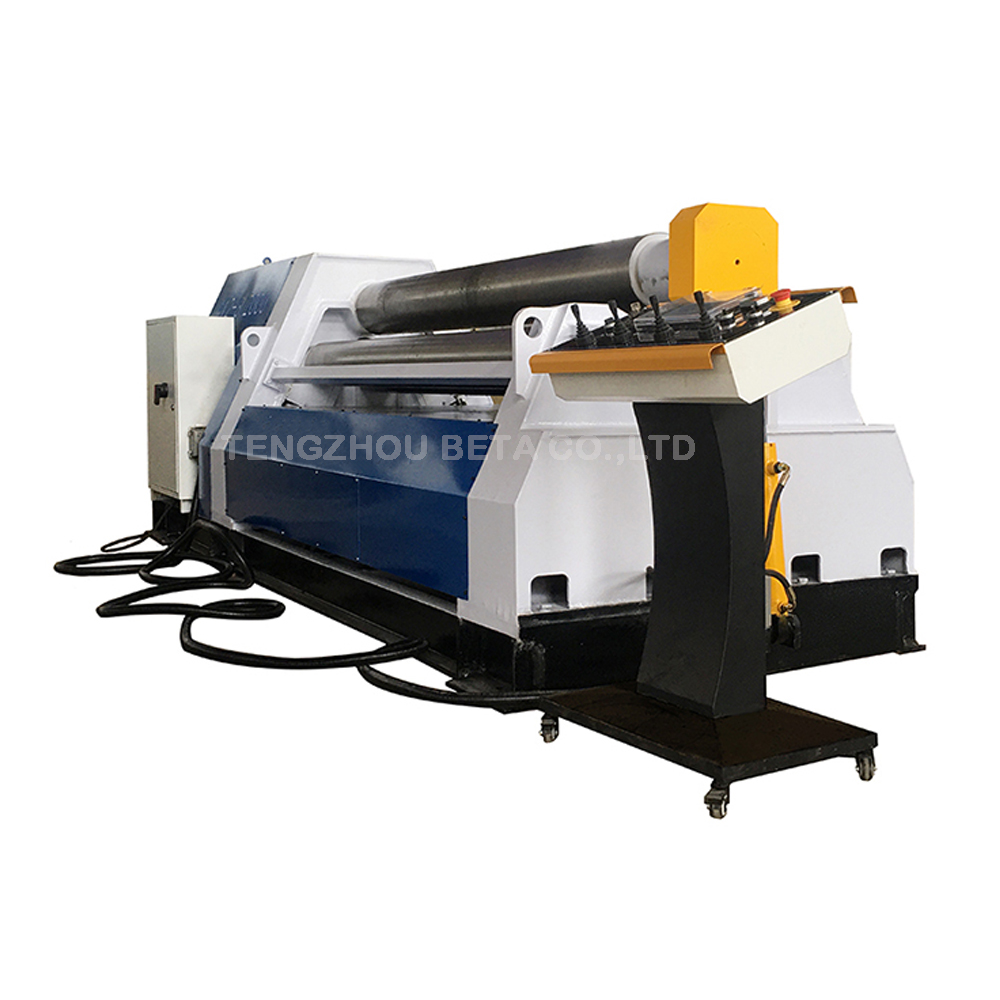

·The CNC four roll plate rolling machine is the core metal sheet forming equipment in the field of mechanical processing, widely applicable to multiple sub fields such as shipbuilding, pressure vessels, steel structure engineering, wind power equipment, chemical machinery, etc. It can achieve precise pre bending, rolling, and shaping integrated processing of metal sheets without the need for additional molds, greatly reducing material loss and improving production efficiency.
·The equipment adopts a fully CNC closed-loop control system, combined with a high-precision hydraulic drive system, with stable pressure output, and can achieve a bending accuracy of 0.1mm level. The roundness error of the roll is controlled within 0.1%, effectively reducing the welding rework rate.
·The body adopts an integral welded structure, with strong rigidity, wear resistance and durability. The rollers have undergone special quenching treatment, greatly extending their service life. At the same time, it is equipped with a touch screen operation interface, supporting programming control, fault self diagnosis and real-time parameter adjustment, making operation convenient, safe and reliable.
·The CNC four roll plate rolling machine can flexibly adapt to metal plates of different thicknesses and widths according to processing requirements. It can meet the rolling needs of small precision parts and also cope with the processing tasks of large heavy workpieces, helping enterprises achieve cost reduction and efficiency improvement, and adapting to the efficient and precise production needs of modern mechanical processing. It is an ideal equipment choice in the field of metal plate processing.
Model | W12SNC-6x2500 |
Upper roller | Φ240 mm |
Lower roller | Φ220 mm |
Side roller | Φ200 mm |
Max bending thickness | 6mm（Q235） |
Max Pre-bending thickness | 4mm（Q235） |
Max bending length | 2500mm |
Working roll drive type | Upper roller hydraulic motor drive |
Machine drive mode | PLC+Touch Screen |
Yield limit of plate | ≤245Mpa |
Rolling speed | Around 4m/min |
Pre-bend remaining straight edges | ≤1.5 times plate thickness |
Minimum rolling diameter at full load | Φ400mm |
Total Power | 7.5KW |
Control System | The control system has an automatic rolling program, which can realize one-touch operation, automatically align the material and roll it into a round shape at one time, and has data numbering, storage and call functions, which can store hundreds of data and facilitate automatic rolling of various specifications. The system is compatible with manual operation programs and can be operated manually when needed. |
Synchronous accuracy of lower and side roller lifting | ±0.2mm |
5. The plate is kept square without slipping during both pre-bending and rolling because of the constant secure clamping of the top and bottom rolls.
6. The metal plate rolling machine electrical control system is based on PLC control, equipped with electrical control and hydraulic control to realize various actions of the automatic metal plate rolling machine.
1. Clearly define the thickness, width, and material of the processed sheet, match the roller length and rated pressure of the equipment to avoid inability to process.
2. Prioritize fully CNC closed-loop control to ensure bending accuracy ≤ 0.1mm and reduce manual operation errors.
3. The roller is made of quenched alloy steel with a surface hardness that meets the standard, avoiding wear and adapting to the processing specifications of the sheet metal.
4. The body is designed with an overall welded structure, which has strong rigidity, no deformation, and extends the service life of the equipment.
5. Confirm that the manufacturer's after-sales service is complete, provide installation and debugging training, and the warranty period is not less than 12 months.
1. We will select the appropriate rolling machine model based on your processing needs and provide you with a rolling solution.
2. We provide a complete set of export customs declaration and clearance documents, assist in handling logistics transportation, and ensure the safe delivery of equipment to designated overseas locations.
3. Support multilingual operation manuals and technical documents, equipped with professional bilingual customer service, timely response to inquiries and problem answers.
4. Provide remote installation and debugging guidance, and arrange technical personnel to go abroad for service to ensure the smooth operation of the equipment.
5. The warranty period is one year, during which spare parts are provided free of charge, and lifelong remote technical support is provided to ensure the long-term stable operation of the rolling machine.
Welcome to contact us for further negotiation.
WhatsApp/WeChat: +86 18266249928
E-mail: info@tzbetamc.com tzbetasales@163.com
