CNC milling machines have become indispensable tools in modern manufacturing, offering precision, efficiency, and versatility across a wide range of industries. Whether you're producing complex parts for aerospace, automotive, or electronics, selecting the right CNC milling machine is critical to optimizing your operations. In this article, we'll walk you through the key features to consider when choosing a CNC milling machine, ensuring you make an informed decision that suits your specific production needs.
When investing in a CNC milling machine, the accuracy and precision of the machine are paramount. These factors determine the quality of your parts, the level of tolerance achievable, and how well your machine can repeat operations over time. Precision is particularly important in industries that require intricate parts with tight tolerances, such as medical device manufacturing or aerospace.
Tolerance: CNC machines are capable of achieving incredibly tight tolerances, often as small as 0.001 mm. The tighter the tolerance, the higher the quality of the parts produced.
Repeatability: A high-quality CNC milling machine must be able to repeat operations without significant deviation between cycles.
Rigid Structure: The frame and construction of the machine play a crucial role in reducing vibrations and maintaining stability during cutting operations.
Factors Contributing to Precision:
Linear Guides & Ballscrews: The precision of the linear guides and ballscrews significantly impacts the machine’s overall accuracy. High-quality guides and screws ensure smooth movement of the tool along the axes.
Coolant Systems: Effective cooling systems help maintain temperature control during machining, ensuring that materials do not expand and contract, which could affect accuracy.
Feature | Impact on Precision |
Tolerance Level | Defines how accurate the machining process can be |
Machine Rigidity | Prevents vibrations that affect precision |
Linear Guides & Ballscrews | Ensure smooth and precise movement of the machine |
Understanding the different types of CNC milling machines is essential for choosing the right one for your specific needs. The primary categories are vertical, horizontal, and universal CNC machines, each of which serves different functions and industries.

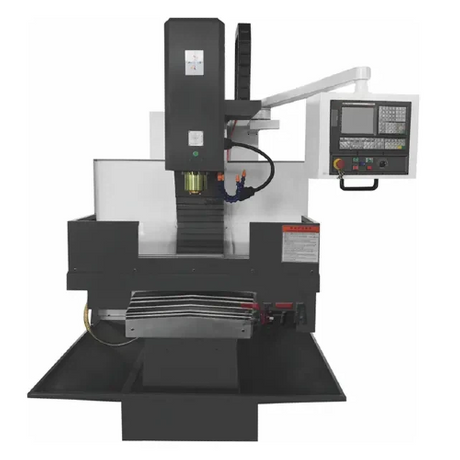

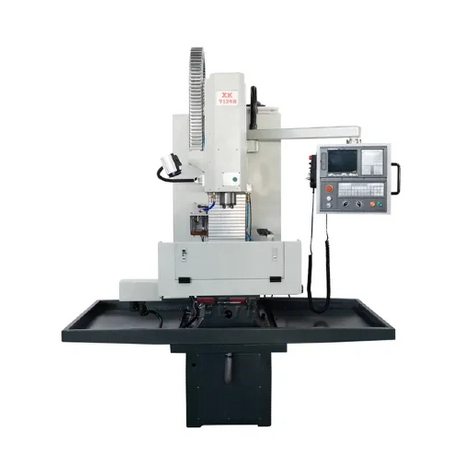

Vertical CNC milling machines are the most common type used in the industry. The spindle is oriented vertically, making it ideal for precision operations on smaller to medium-sized parts. These machines are typically used for:
Drilling
Milling
Tapping
Boring
Vertical mills are highly versatile and can be used for a wide range of machining tasks. They're often employed in the production of complex, detailed parts that require intricate cuts.
Horizontal CNC milling machines, as the name suggests, have a horizontally oriented spindle. This design is beneficial for cutting large, heavy, and complex parts. Horizontal milling machines are often used in industries such as automotive and aerospace, where large parts with deep cuts are common.

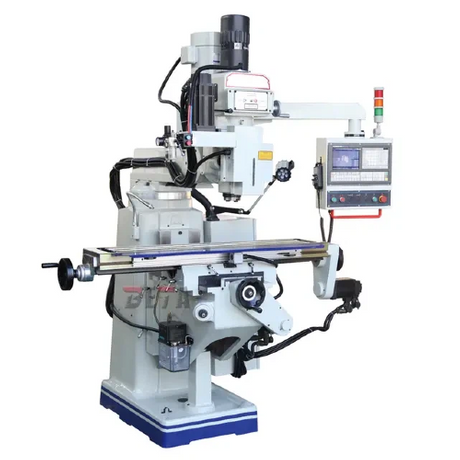

Universal CNC milling machines combine the capabilities of both vertical and horizontal mills, allowing operators to rotate the workpiece to achieve different cutting angles. This flexibility makes universal mills ideal for complicated machining tasks that require versatility in part orientation.
Machine Type | Best Use Case |
Vertical CNC Milling Machine | Small to medium parts, precision work |
Horizontal CNC Milling Machine | Large, heavy parts, deep cuts |
Universal CNC Milling Machine | Complex, multi-angle machining tasks |
The size and workspace of a CNC milling machine are crucial factors that influence what kind of parts can be machined. It's essential to select a machine with enough capacity to handle your largest workpiece, while still being efficient for smaller jobs.
X, Y, and Z Axes Travel: These three axes control the movement of the milling tool. The size of the travel range determines the maximum size of the parts that can be produced. For example, a machine with 1000 mm of travel along the X-axis can work with larger components compared to a machine with only 500 mm of travel.
Tool Size: The size of the tool holder and cutting tools should be considered. Machines with larger tool capacity can accommodate a wider variety of tools, making them more versatile.
Feature | Impact on Workspace |
X, Y, Z Axes Travel | Determines the size of the workpieces that can be machined |
Tool Capacity | Affects the variety of tools that can be used on the machine |
The spindle power and speed of a CNC milling machine are key factors that influence its performance. These two elements affect the machine's ability to handle different materials and achieve the desired cutting speeds.
Spindle power is crucial when cutting tougher materials like steel or titanium. Higher spindle power allows the machine to cut through these materials with greater ease and at higher speeds.
High spindle speeds are necessary for machining soft materials like aluminum or plastic, allowing for smoother cuts and improved surface finish. In contrast, materials such as steel may require lower spindle speeds to prevent overheating and tool wear.
Feature | Material Suitability |
Spindle Power | Handles tougher materials like steel |
Spindle Speed | Ideal for softer materials like aluminum |
The CNC controller is the heart of the milling machine, dictating how the machine performs and interacts with the operator. The type of controller impacts the ease of programming, the complexity of operations, and the overall efficiency of the machine.
Ease of Programming: Some CNC controllers, like FANUC or Siemens, offer more intuitive interfaces, making it easier to set up jobs and make adjustments.
Versatility: Modern CNC controllers offer a wide range of programming capabilities, allowing users to create complex machining operations.
Connectivity: Advanced controllers allow for easy integration with CAD/CAM systems, streamlining the design-to-production process.
Controller Brand | Key Advantages |
FANUC | Widely used, easy programming |
Siemens | Advanced features, reliable performance |
GSK | Cost-effective, suitable for general tasks |
An efficient tool changing mechanism is an important feature in CNC milling machines, particularly for high-volume production environments. Automatic tool changers (ATC) minimize downtime by allowing the machine to quickly switch between tools without requiring manual intervention.
Carousel ATC: A carousel tool changer rotates to bring the correct tool to the spindle.
Arm-type ATC: This type uses a robotic arm to fetch and change tools.
Drum ATC: This mechanism uses a drum that holds multiple tools and rotates to change tools automatically.
Tool Changing Mechanism | Efficiency |
Carousel ATC | Suitable for moderate to high volume production |
Arm-type ATC | Ideal for precise and heavy-duty machining |
Drum ATC | Most efficient for large-scale operations |
The build quality of a CNC milling machine directly impacts its durability and overall performance. High-quality materials, such as cast iron for the base and frame, contribute to the machine’s ability to maintain accuracy and stability over time.
Material Construction: Strong materials like cast iron help absorb vibrations and ensure the machine operates smoothly.
Rigidity: A rigid machine structure is necessary to prevent distortion during cutting, ensuring that the machine delivers precise results even under heavy workloads.
To ensure that your CNC milling machine runs efficiently, maintenance is critical. Machines that are easy to service and maintain will save you time and reduce downtime during production.
Easy Access to Key Components: Look for machines that allow for easy access to critical parts such as the spindle, tool changers, and coolant system.
Availability of Replacement Parts: Ensure that spare parts are readily available from the manufacturer to minimize downtime.
In conclusion, selecting the right CNC milling machine is crucial to ensuring high-quality production and operational efficiency. Whether you are looking for precision, versatility, or reliability, understanding key features like accuracy, spindle power, tool changing mechanisms, and the machine's build quality can help you make an informed decision. At TENGZHOU BETA CO., LTD., we offer a range of CNC milling machines designed to meet diverse manufacturing needs. Our machines are built with advanced technology, ensuring long-lasting durability and high performance in various industries. If you are looking for a CNC milling machine that suits your specific requirements, we invite you to explore our offerings and get in touch with our team for personalized solutions. We are committed to helping you find the perfect CNC milling machine to optimize your production process.
1. What is the difference between vertical and horizontal CNC milling machines?
Vertical CNC machines are better suited for precision work on smaller parts, while horizontal machines are ideal for handling larger, heavier workpieces and deep cuts.
2. How does the CNC controller impact machine performance?
The CNC controller determines the ease of operation, programming flexibility, and the complexity of tasks the machine can perform, impacting overall efficiency.
3. Why is spindle power important in CNC milling?
Spindle power allows the machine to cut through tougher materials like steel, and higher spindle power results in faster and more efficient machining of dense materials.
4. What is an automatic tool changer (ATC) and why is it important?
An ATC automatically changes tools without manual intervention, significantly reducing downtime and increasing efficiency in high-volume production.
5. How often should a CNC milling machine be maintained?
Regular maintenance, such as cleaning, lubrication, and checking parts for wear, is necessary to ensure smooth operation and extend the lifespan of the machine.
