CNC Lathe Specialized for Sealing Rings | Turning Solution for Seal Components
1. Solution Overview
This customized CNC lathe solution is exclusively developed for mass production of various rubber, PTFE, PU, NBR, FKM, POM materials sealing products.

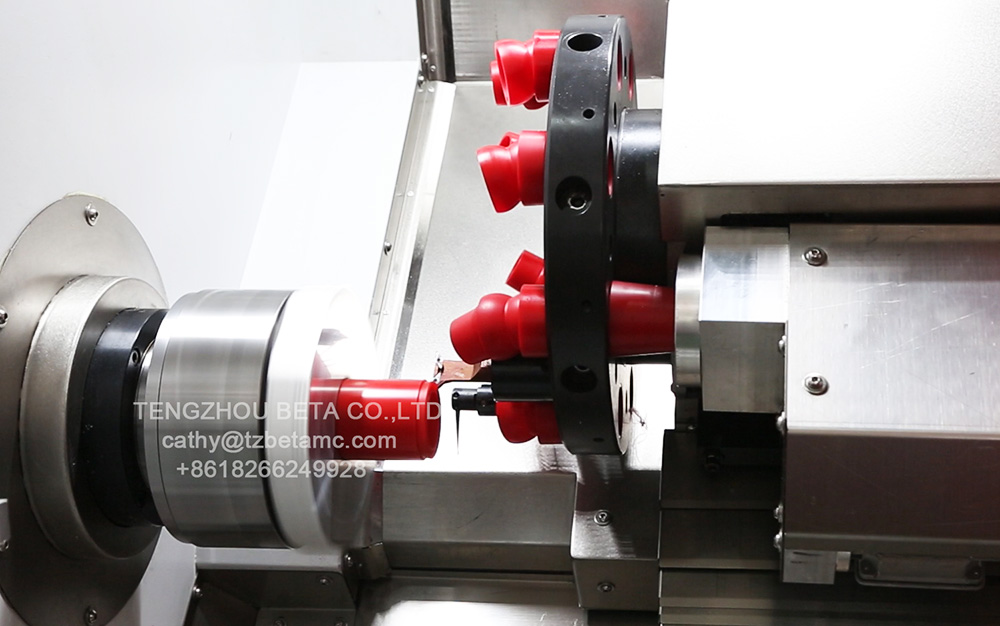

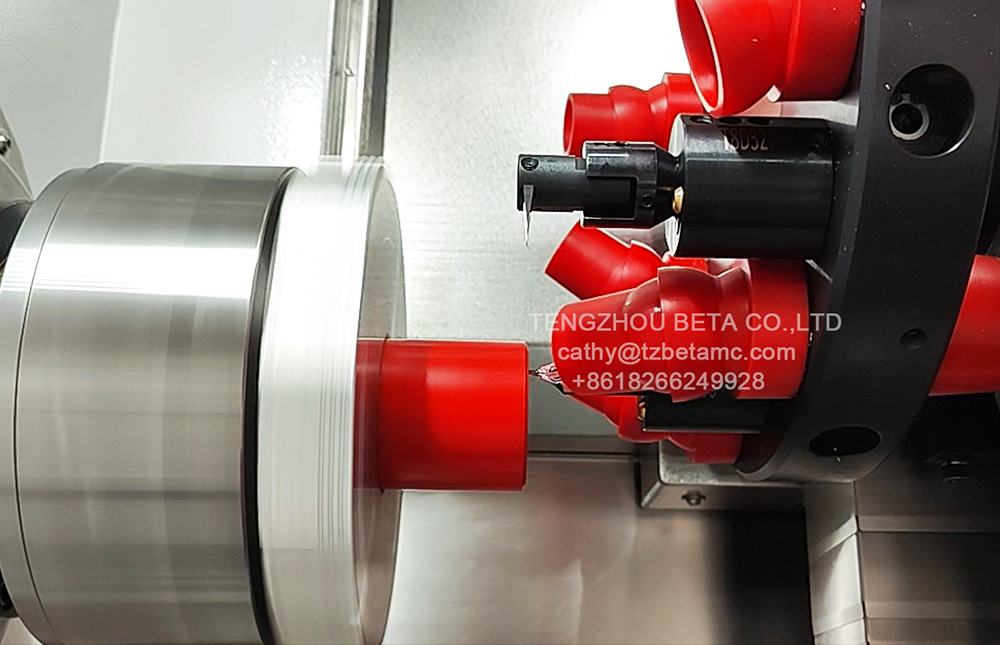

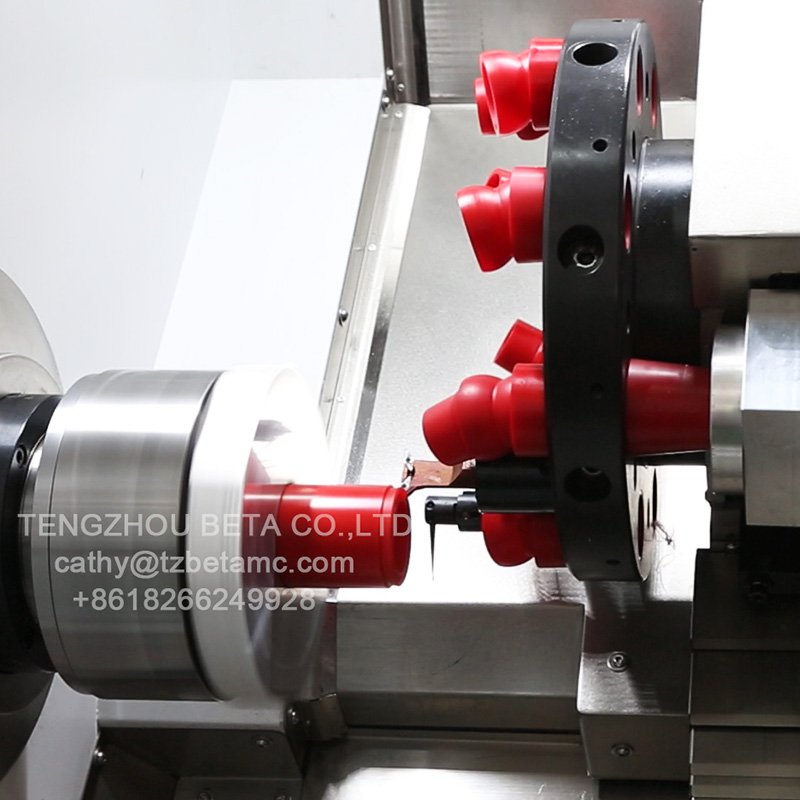

Different from general metal turning lathes, our seal-dedicated CNC lathe optimizes spindle vibration, low-friction cutting system, soft material special tooling and dust-proof sealing structure, perfectly solving common processing pain points of sealing parts: easy deformation, burr generation, uneven surface, size instability and low yield rate.
We supply complete one-stop solutions including special lathe body, seal fixtures, dedicated cutting tools, suction unit device, tools cabinet and seal making programe files, suitable for small-batch prototype trial and large-scale continuous mass production of seal factories.

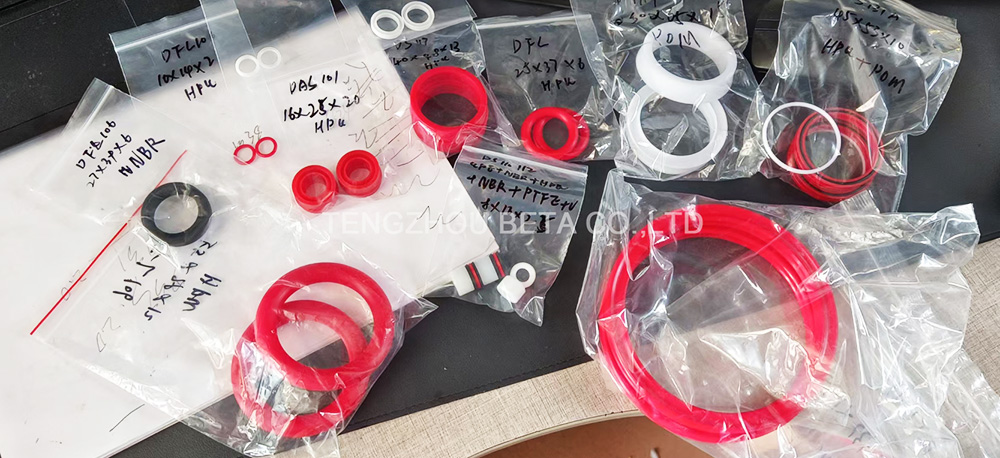

2. Main Processable Sealing Products
Rubber & Elastomer Seals

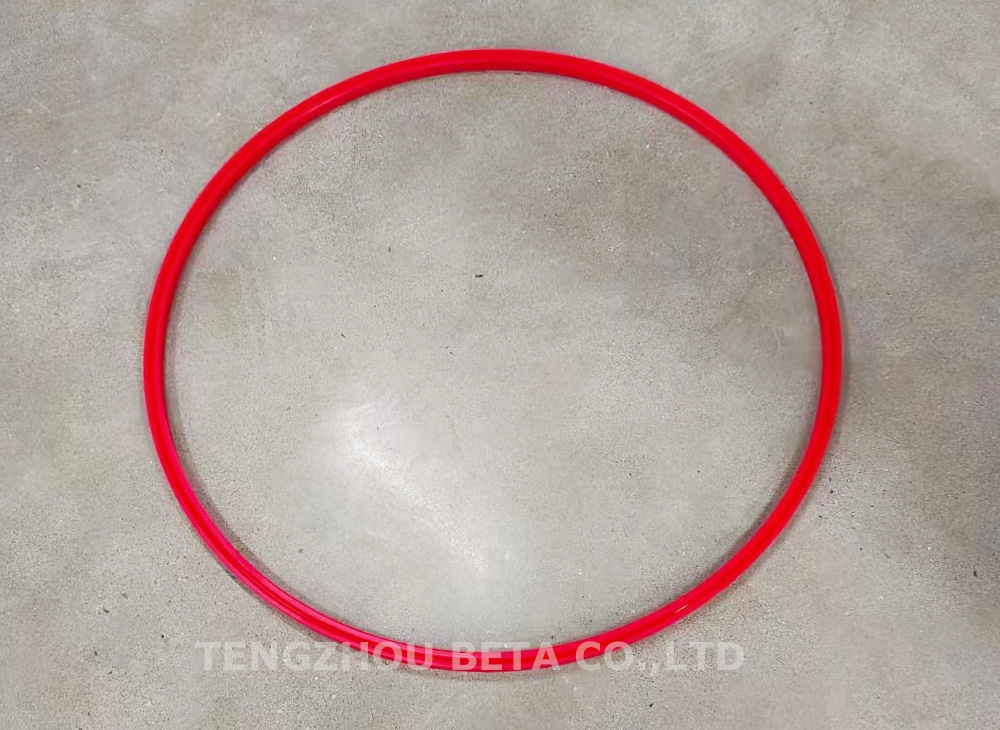

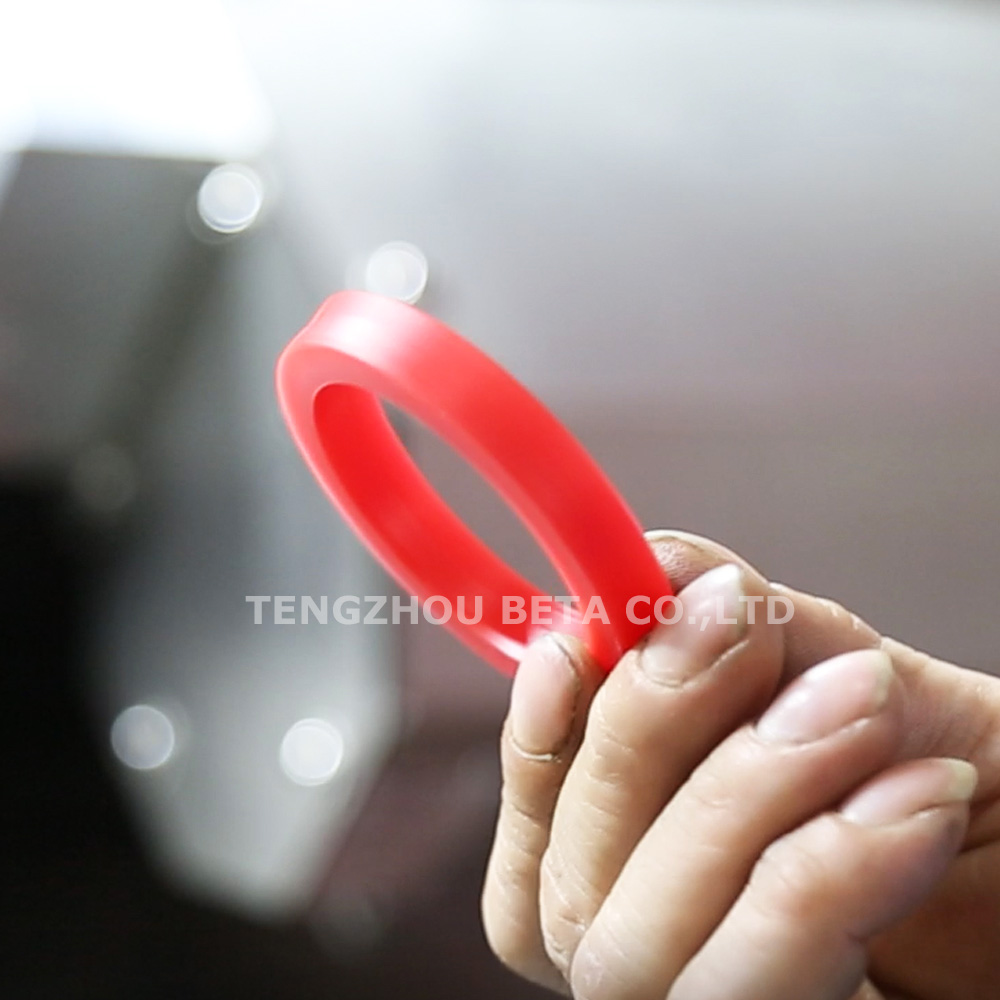

O-ring, oil seal, shaft seal, valve seal, hydraulic cylinder seal, piston seal, rod seal, dust wiper, gasket, flat rubber sealing ring, rotary seal, static seal, machinery end face seal
Material: NBR, FKM, HNBR, PU polyurethane
Plastic & High Polymer Seals
PTFE teflon seal, PTFE filled composite seal, PEEK sealing ring, nylon gasket, plastic back-up ring
Material: Pure PTFE, glass fiber/carbon filled PTFE, PEEK, PA.
Special Industrial Seals
New energy battery sealing parts, automotive engine sealing rings, hydraulic machinery high-pressure seals.
3.Core application scenarios
Non standard customized seal processing:
The equipment generates processing programs directly through software programming, without the need for mold opening, and can quickly process seals of any size and cross-section. It supports a minimum order of 1 piece, greatly reducing the delivery cycle of non-standard parts and adapting to urgent orders and small batch requirements in fields such as engineering machinery and petrochemicals.
Production of oversized seals:
Mainstream specialized equipment can cover a processing range of 3mm to 2.5 meters in diameter, breaking through the size limitations of traditional molding processes and meeting the large-diameter sealing needs of large equipment.
High precision sealing batch manufacturing:
The equipment can control the dimensional tolerance within ± 0.02mm, and the batch size consistency is better than ± 0.005mm.
4. Typical industry landing
In the field of construction machinery, it is used for the processing of seals for excavator hydraulic cylinders and crane telescopic arms, and can withstand high pressure impacts of 40-60MPa and high-frequency reciprocating motion conditions.
Maintenance supporting scenario: on-site measurement of faulty seal parameters can be conducted, and replacement parts can be produced within 48 hours, significantly reducing equipment downtime and minimizing production losses.
5. Application value
Compared to traditional molding processes, this type of equipment can increase production efficiency by 50%, reduce waste by 30%, and lower overall production costs by 15%. It also supports the processing of multiple materials such as PU, NBR, POM, FKM, PTFE, making it the core supporting equipment for current seal turning manufacturing.
