General Hardware & Mold Components

CNC Machining Center Solution for General Hardware & Mold Components

1. Solution Overview

Our vertical & high-speed CNC machining center solutions are specially customized for general hardware workshops, mold manufacturing factories and precision tooling suppliers.

We supply full series of 3-axis standard VMC, 4-axis rotary machining center, 5-axis linkage machining center, matched with mold fixtures, tool holders, automatic tool changers and robot loading/unloading units.

This integrated machining system solves core pain points of mold & hardware manufacturers: frequent product switching, hard mold steel cutting, complex cavity contour, strict fitting tolerance, small-batch multi-variety flexible production, effectively shorten processing cycle, reduce manual secondary clamping error and improve finished product consistency.

2. Main Processable Workpieces

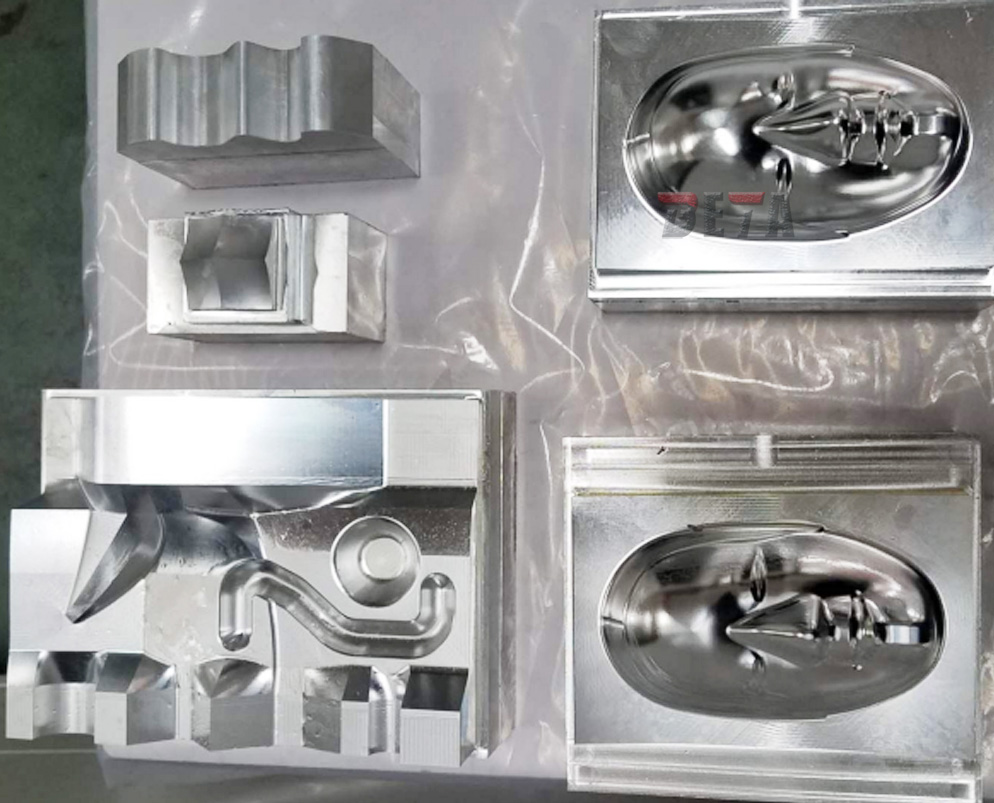

Mold Components (Injection Mold / Stamping Die / Die Casting Mold)

Mold base, mold cavity, core insert, slide, lifter, ejector pin, guide pillar, guide bush, locating ring, cooling water sleeve, mold electrode, punch & die blade, mold fixture plate, mold slider block, mold wear plate

General Hardware Mechanical Parts

Equipment bracket, aluminum alloy housing, gear blank, hydraulic valve block, fixture base, positioning block, flange plate, connecting block, precision shaft sleeve, automation equipment structural parts, custom non-standard hardware fittings

Machinable Materials

P20, 718H, H13, S136, Cr12MoV hardened mold steel (HRC 28–62), 45# steel, alloy steel, aluminum alloy, brass, copper, cast iron, engineering plastic

3. Core Advantages of Our Mold & Hardware Machining Solution

3.1 High Rigidity Body for Heavy & Hard Steel Cutting

Whole machine heavy stress-relieved cast iron bed & box-type cross rib structure, effectively resist vibration during long-hour hard steel milling

High-precision linear guide & C3 grade ball screw, stable positioning accuracy .

High-torque BT40/BT50 spindle, optional high-speed direct drive spindle can be choose.

3.2 One-Clamping Multi-Process Integrated Machining

Complete plane milling, cavity roughing & finishing, drilling, tapping, boring, chamfering, contour engraving in single clamping; 4/5-axis model supports multi-surface linkage machining, eliminate repeated alignment error, cut auxiliary processing time by over 40%.

3.3 Flexible Production for Multi-Variety Small & Medium Batches

Large-capacity automatic tool magazine (16/24/32 tools), fast tool change within 1.5s, quick switching between different mold & hardware workpieces

Pre-built machining subprogram library for common mold plates, standard mold parts and general hardware blocks, shorten operator programming time

Support single prototype trial piece and mass batch production, perfectly fit small mold workshops with frequent order model changes

3.4 Optional Full-Automatic Unmanned Production Configuration

For factories with heavy order backlog and tight delivery schedule:

Automatic tool changer + chip conveyor + oil mist collector: Continuous cutting without frequent manual cleaning

Automatic pallet changer: Double worktable alternate processing, no downtime during workpiece loading

Gantry robot loading & unloading: Realize 8–24 hours unattended machining, cut labor cost significantly

3.5 Stable & Low Maintenance Intelligent Control

Optional FANUC, SIEMENS, Syntec, GSK CNC systems with mold machining dedicated functions; thermal compensation system reduces thermal deformation during long-time operation, maintain consistent machining precision. Standardized spare parts worldwide, lower failure rate and maintenance cost.

4. Three Customized Solution Packages for Different Clients

Package 1: Economic 3-Axis VMC – For Small Hardware & Entry-Level Mold Shops

Target clients: Small mold workshops, general hardware OEM factories, multi-model small batch production

Configuration: Standard 3-axis vertical machining center, BT40 spindle, 16-tool magazine, manual clamping table

Highlights: Low initial investment, small floor space, easy operation, fully meet processing demands of mold base, standard mold accessories and common hardware blocks.

Package 2: High-Speed Mold Machining Center – For Professional Precision Mold Manufacturers

Target clients: Injection mold, stamping die, die casting mold factories with high precision & surface quality requirements

Configuration: High-speed direct drive spindle, high-rigidity machine structure, 24-tool magazine.

Highlights: Fast finishing speed, ultra-smooth mold cavity surface, less polishing workload, greatly shorten mold delivery cycle.

Package 3: 4/5-Axis Automatic Production Line – For Large Mold & Complex Hardware Factories

Target clients: Large mold makers, automation hardware component manufacturers with complex 3D contour parts

Configuration: 4-axis rotary table / 5-axis linkage machining center, automatic pallet changer, robot loading unloading system

Highlights: One-time clamping multi-angle full contour machining, reduce multiple clamping steps, stable precision for complex curved mold cores and irregular hardware structural parts.

5. Full Life cycle Professional Supporting Service

Pre-Sales

Free drawing evaluation for mold parts & hardware components

Custom machining process planning and cutting parameter optimization

Free sample trial cutting to verify precision and surface quality

Workshop layout planning and production line matching scheme design

In-Sales

Flexible machine configuration adjustment according to workpiece size, hardness and daily output

Matching mold fixture, tool holder and cutting tool supply

Real-time production photos & video tracking before shipment

After-Sales

Overseas engineer on-site installation, commissioning and operator programming training

24-hour online English technical support for emergency breakdown

Global spare parts warehouse for fast delivery of wearing parts

Regular machine accuracy calibration guidance to keep long-term stable machining performance
