In the modern manufacturing landscape, the demand for precision, speed, and continuous operation has driven factories to adopt highly efficient machining solutions. High-volume production lines require machine tools that can maintain structural rigidity, handle rapid chip removal, and sustain extreme accuracy over thousands of continuous cycles. Among the various metal-cutting technologies available today, slant bed design configurations have become the industry standard for turning centers dedicated to mass production. Industrial facilities globally are transitioning away from traditional flatbed designs to capitalize on the superior ergonomics and mechanical stability offered by these advanced systems.
Slant bed CNC lathes are critical manufacturing systems designed with an angled bed structure—typically 30, 45, or 60 degrees—that allows for superior chip flow, exceptional structural rigidity, high thermal stability, and seamless integration of live tooling for rapid, uninterrupted high-volume component manufacturing.
Understanding how these robust turning centers optimize cycle times and minimize downtime is essential for production managers looking to scale their operations. By analyzing their mechanical advantages, specific industry applications, and automated integration capabilities, facilities can significantly improve their overall equipment effectiveness (OEE). This comprehensive guide explores the pivotal role these specialized machines play across global supply chains and highlights why they remain indispensable for modern mass production.
Section | Summary |
Structural Advantages of Slant Bed Design in Mass Production | Explores how the physical inclination of the bed enhances rigidity, thermal dissipation, and gravity-assisted chip management during continuous manufacturing. |
Critical Applications in Automotive Component Manufacturing | Details the specific high-volume parts produced for the automotive sector, including drive shafts, gears, and steering knuckles. |
Aerospace Sector Precision and High-Volume Output | Focuses on how these turning centers handle tough alloys like titanium and Inconel to deliver flight-critical aerospace fasteners and fittings. |
Energy and Power Generation Component Fabrication | Discusses the production of heavy-duty connectors, valves, and couplings used extensively in oil, gas, and renewable energy infrastructure. |
Medical Device Production and Miniature Components | Examines the precision turning of high-volume medical screws, orthopedic implants, and specialized surgical instrument components. |
Optimizing Cycle Times with Sub-Spindles and Live Tooling | Explains the productivity boosts achieved by combining main and secondary spindles with driven tools to eliminate secondary setups. |
Automation Integration and Unattended Manufacturing | Evaluates how bar feeders, robotic arms, and gantry loaders pair with slant bed turning centers for complete lights-out production. |

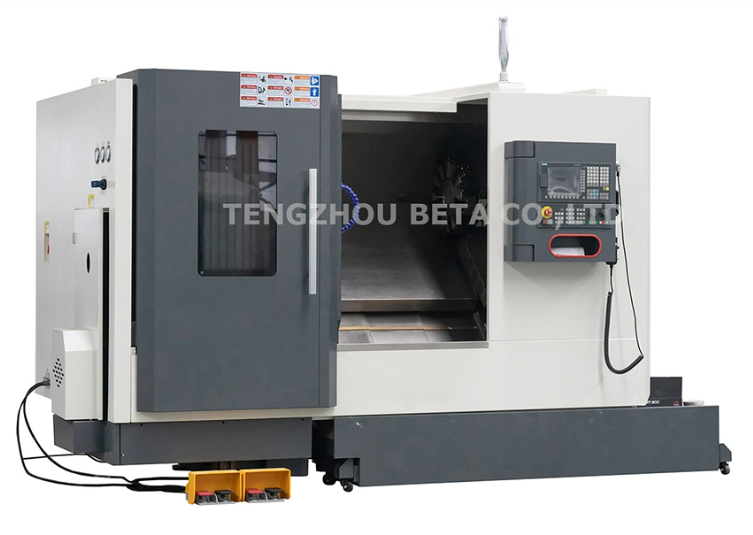

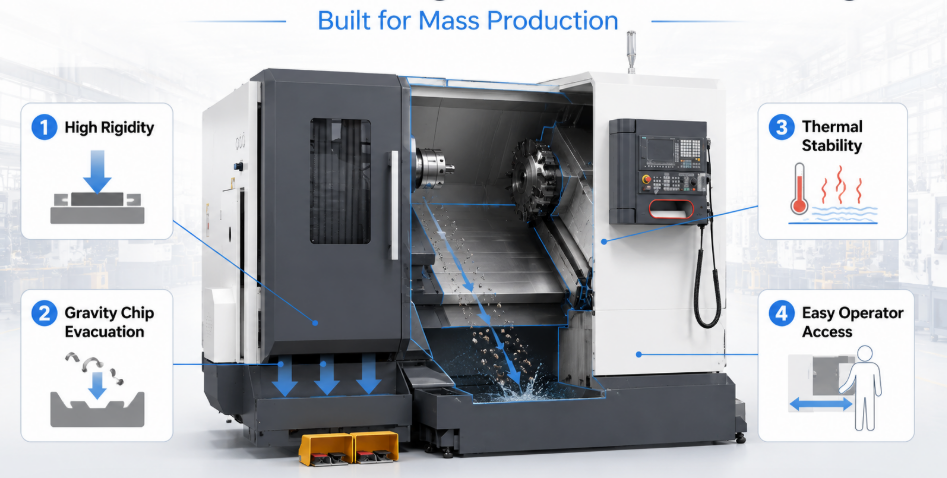

The structural design of slant bed CNC lathes utilizes a tilted base casting to align the cutting forces directly with the machine foundation, maximizing rigidity and facilitating automated chip evacuation.
When operating in high-volume production environments, machines are subjected to continuous cutting forces that can induce vibration and thermal expansion. The classic flatbed lathe often struggles with chip accumulation on the ways, leading to premature wear and tracking errors. In contrast, the angled construction of a slant bed CNC lathe utilizes gravity to ensure that hot metal chips and coolant fall immediately into the chip conveyor below. This prevents heat buildup within the machine casting, preserving the tight tolerances required across thousands of consecutive parts.
Furthermore, the cross-sectional area of the base casting in an angled machine is significantly larger than that of a comparable flatbed machine. This geometric advantage means the cutting force exerted by the tool turret is directed straight down into the heavy cast-iron bed and machine foundation. The result is a dramatic reduction in tool chatter, allowing operators to run higher spindle speeds and deeper depths of cut. By mitigating vibration, the machine extends the operational life of carbide and ceramic cutting tools, reducing the frequency of tool changes and maximizing scheduled uptime.
Feature Comparison | Slant Bed Configuration | Traditional Flatbed Configuration |
Chip Evacuation | Gravity-assisted; immediate disposal | Manual or mechanical scraping required |
Rigidity & Mass | Higher center of mass alignment; low chatter | Susceptible to twisting under heavy torque |
Thermal Stability | High; heat sources isolated from the bed | Lower; chips transfer thermal energy to ways |
Ergonomics | Excellent operator access to the spindle | Restricted access on wider machine bases |
Automotive manufacturing relies on slant bed turning centers to fabricate high-precision powertrain, steering, and suspension components at exceptionally low cycle times.
The automotive supply chain demands millions of identical parts per year with zero tolerance for defects. Components such as drive shafts, CV joints, brake pistons, and steering knuckles require multi-axis turning, threading, and grooving. Utilizing a high-performance slant bed CNC lathe allows automotive tier-one suppliers to maintain surface finishes of less than Ra 0.4 micrometers while meeting rigid cycle time targets. The inherent rigidity of the angled bed allows for aggressive roughing cuts on forged steel blanks followed immediately by ultra-precise finishing passes.
To achieve maximum efficiency on the shop floor, factories frequently deploy a heavy duty slant bed CNC lathe configured with high-torque spindles to process hardened steel alloys. This ensures that features like spline shafts and internal oil grooves are machined in a single operation, eliminating the need to move parts to secondary milling or grinding stations. The reduction in material handling drastically lowers labor costs and eliminates the risk of part misalignment between operations.
Engine Valves and Fuel Injector Bodies: Requiring extreme concentricity and microscopic tolerances to optimize fuel efficiency and engine emissions.
Wheel Hubs and Flanges: Heavy-duty turned parts that experience high stress and require deep metal removal rates.
Transmission Gear Shafts: Multi-diameter shafts with precise keyways and splines machined via live tooling.
The aerospace industry utilizes slant bed turning centers to process exotic, heat-resistant superalloys into flight-critical fasteners, fittings, and hydraulic engine components.
Aerospace manufacturing introduces unique challenges, specifically the machining of materials such as Titanium, Inconel, and specialized stainless steel grades. These materials are notorious for work-hardening rapidly and generating extreme heat at the cutting edge. A slant bed CNC lathe excels in this environment because its rigid structure can withstand the immense tool pressures required to shear through tough superalloys. The continuous flow of high-pressure coolant combined with immediate chip drop prevents the re-cutting of chips, which would otherwise cause catastrophic tool failure.
High-volume aerospace fasteners, such as specialized bolts and airframe rivets, must comply with strict international quality standards. The thermal stability of the angled bed design ensures that the distance between the spindle centerline and the tool turret remains constant throughout long production shifts. This prevents dimensional drift caused by morning-to-night factory temperature fluctuations. By keeping the manufacturing process highly predictable, aerospace contractors minimize scrap rates and avoid costly post-machining inspection failures.
Hydraulic Line Connectors: Lightweight titanium fittings requiring precise, leak-proof thread profiles.
Turbine Disk Spacers: Complex circular components requiring uniform wall thicknesses and zero surface blemishes.
Landing Gear Bushings: Heavy-walled bronze or steel sleeves machined to tight interference-fit tolerances.
In the energy sector, slant bed lathes are used to manufacture robust connectors, valve internal parts, and fluid control components capable of withstanding extreme environmental pressures.
Whether producing components for traditional oil and gas extraction or subassemblies for renewable wind and solar infrastructure, high production volumes must be paired with industrial durability. Large-diameter valves, deep-well drill pipe couplings, and wind turbine fastening bolts are commonly processed on these machines. Because these parts often feature complex, heavy internal threads (such as API threads), the lathe must deliver immense low-end torque without sacrificing rotational smoothness.
To support the rapid throughput of heavy raw billets, facilities require advanced machinery. Implementing a slant bed CNC turning center with sub spindle allows the front and back ends of a valve stem or fluid coupling to be machined simultaneously or in immediate succession. This eliminates the manual flipping of heavy workpieces, protecting workers from injury and significantly increasing the daily volume of parts processed by a single operator.
Flanges and High-Pressure Couplings: Components that seal critical pipelines and must feature perfect perpendicularity between the thread and the mating face.
Pump Shafts and Impeller Mounts: Long, slender shafts turned using hydraulic tailstocks or steady rests to eliminate part deflection.
Solar Tracker Pivot Pins: High-volume, corrosion-resistant pins requiring consistent outer diameter tolerances for long-term outdoor deployment.
The medical manufacturing industry employs high-precision slant bed lathes to produce micro-components, bone screws, and orthopedic implants from biocompatible metals.
While high-volume production often brings to mind large automotive or industrial components, the medical sector requires massive volumes of incredibly small, high-precision parts. Titanium bone screws, dental implants, and endoscopic instrument joints must be manufactured by the thousands under immaculate cleanroom-adjacent conditions. A micro-turning slant bed CNC lathe provides the exceptionally high spindle speeds (often exceeding 6,000 RPM) necessary to machine small-diameter bars efficiently.
The slant bed architecture is highly beneficial here because it allows for compact machine footprints while maximizing internal workspace accessibility. Linear guideways and high-resolution optical scales can be mounted easily, allowing the CNC system to make micro-adjustments down to the sub-micron level. The rapid evacuation of minuscule titanium chips prevents them from scratching the highly polished surfaces of implants, ensuring every part meets strict medical surface-integrity mandates.
Pedicle and Orthopedic Screws: Featuring specialized variable-pitch threads designed to grip human bone structure securely.
Prosthetic Joint Spheres: Highly spherical cobalt-chrome or titanium balls requiring mirror-like surface finishes.
Surgical Tool Handles and Collets: Ergonomic stainless steel components featuring precise knurled grips and internal assemblies.
Equipping a slant bed lathe with a secondary sub-spindle and live driven tools transforms it into a complete multi-tasking center that compresses cycle times by finishing parts in one step.
In traditional setups, a part requiring both turning and off-center milling or cross-drilling had to be transferred from a lathe to a vertical machining center. This multi-machine workflow introduces queue times, part tracking errors, and additional fixturing costs. Modern high-volume manufacturing circumvents this bottleneck by utilizing a slant bed CNC lathe equipped with a 12 or 24-station live tool turret. The turret holds motorized tool holders capable of drilling, tapping, and end-milling directly on the turned part while the main spindle indexes precisely along the C-axis.
Integrating a multi-axis slant bed CNC lathe further optimizes this process by introducing a secondary spindle that opposes the main spindle. When the machining operations on the front of the part are complete, the sub-spindle flies forward, clamps onto the part, and extracts it. While the main spindle begins processing a fresh segment of raw bar stock, the sub-spindle finishes the back-working operations (such as rear drilling or counter-boring). This "done-in-one" philosophy cuts cycle times by up to 50% and dramatically reduces work-in-progress (WIP) inventory on the shop floor.
[Main Spindle: Front Turning/Milling] ---> [Part Transfer via Synchronized Sub-Spindle] ---> [Sub-Spindle: Rear Machining]
|
[Continuous Raw Bar Stock Input] <----------------------------------------------- [Finished Part Ejected to Conveyor]
Elimination of Secondary Fixtures: Saves thousands of dollars annually in specialized jaw and clamping design.
Perfect Concentricity: Transferring parts electronically between synchronized spindles ensures front-to-back axial alignment within microns.
Reduced Floor Space Requirements: One multi-tasking turning center replaces the footprint of a standard lathe and a standalone drilling machine.
The geometric openness of slant bed CNC lathes enables seamless integration with automated material handling systems for continuous, lights-out high-volume manufacturing.
To remain competitive in a globalized market, modern machine shops must minimize direct human labor per part. The open-front design of a slant bed CNC lathe makes it uniquely compatible with automated peripherals compared to traditional flatbed designs. High-volume operations routinely equip these machines with hydrodynamic bar feeders that automatically load raw material tubes through the spindle bore as soon as the previous part is cut off.
For larger forgings or castings that cannot be fed through a bar loader, robotic arms or overhead gantry systems are easily integrated. The robot can easily reach into the spacious enclosure of an automated slant bed CNC turning center, swap out a finished part, clear the chuck jaws with an integrated air blast, and seat a fresh blank. Combined with automated tool wear compensation systems and broken tool detection sensors, these manufacturing cells can run completely unattended through night shifts and weekends, maximizing profitability.
Hydrodynamic Bar Feeders: Maintain high-speed rotation of long bar stocks while dampening destructive vibrations.
Parts Catchers and Unloading Conveyors: Automatically extend to catch finished components as they are parted off, transferring them safely outside the machining enclosure.
In-Process Tool Probing: Automatically measures tool geometry and inputs wear offsets directly into the CNC controller, preventing dimensional drift without operator intervention.
